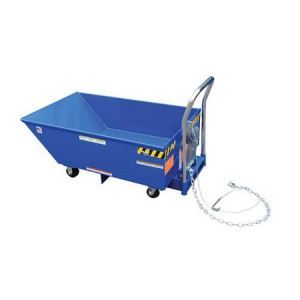

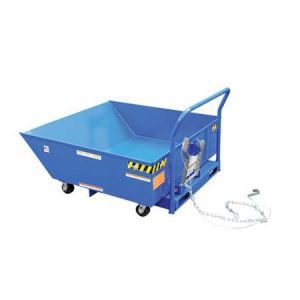

Low Profile Hopper - Beacon® BHOP-LP Series

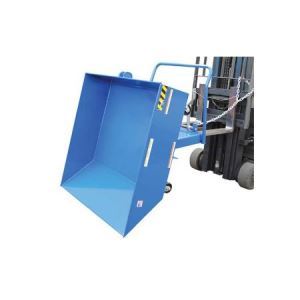

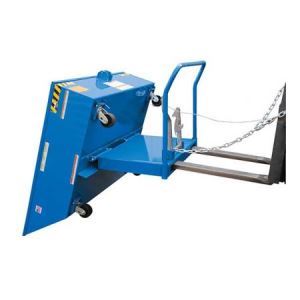

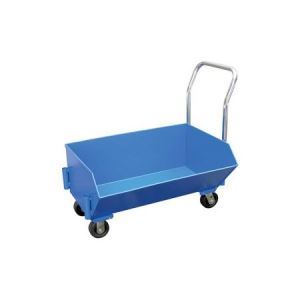

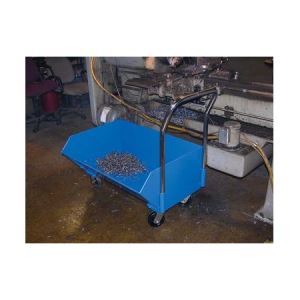

The Low Profile Hopper - Parts Hopper feature a low profile, allowing them to be placed underneath machinery to be used as catch basins for parts. The BHOP-LP series is dumped with the assistance of a fork truck. The unit features fork pockets for 90-degree dumping. These low-profile units help reduce hazards and inconveniences associated with collected parts off the floor. The BSLPT series features a removable handle that may be used at either end and also has a tapered side for quick loading and unloading of waste, chips, and scraps in work areas.
Product Details - Construction: Constructed of heavy duty steel. The BHOP-LP series features 10 gauge steel construction, and the BSLPT features 14 gauge steel construction.
- Size: Each unit features a removable push handle, either 34" or 37" high. The height of the BSLPT without handle is 22". The BHOP-LP is 18" high without the handle.
- Overall Fork Width: The fork pocket width is 7" and height is 2" on the BHOP-LP series. The BHOP-LP-N features a fork pocket center a 7-3/4" while the BHOP-LP has a fork pocket center of 21-5/8"
- Color: Units are powder-coated Beacon blue.
- Weight: Models weigh between 100 and 384 lbs.
- Operation: The BHOP-LP series will return to the locked position when the material is dumped and when it is lowered to the ground.
- Capacity: This series has a capacity of 1, 000 or 2,000 lbs. and a volume capacity of 1/4, 1/2 or 1/3 cubic yards.

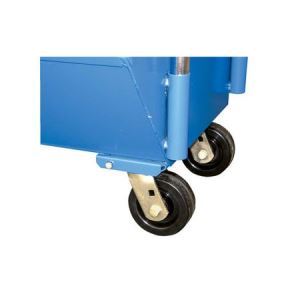

- Standard: The Low Profile Hopper model BHOP-LP comes standard with 34" removable handle and 2 rigid and 2 swivel 4" x 2" phenolic casters. BSLPT comes with a 37" removable push handle and 2 rigid and 2 swivel 5" x 2" poly-on-steel casters.
- Note: All standard and special hoppers are stitch welded. Special continuous welds for liquid tight available at additional charge.
