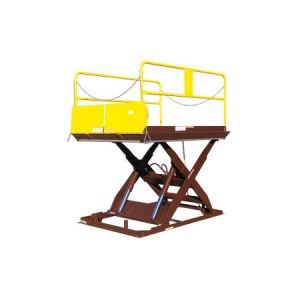

Loading Dock Lift - Beacon® BWL-100 Series

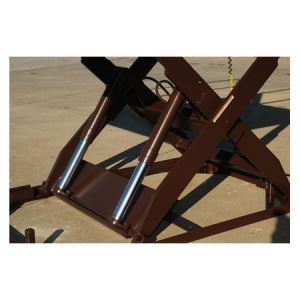

This Loading Dock Lift reduces employee work hours and improves efficiency in work areas with all loading dock heights. Its design features push-button control via a 24 V AC on a 20' coil cord. The Loading Dock Lift hydraulic cylinders feature an emergency velocity fuse should the line break. The pre-wired control box has a magnetic starter and overload fuse.

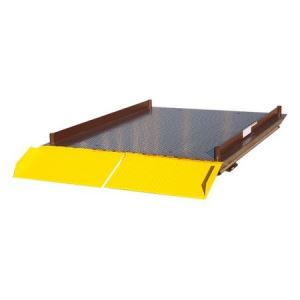

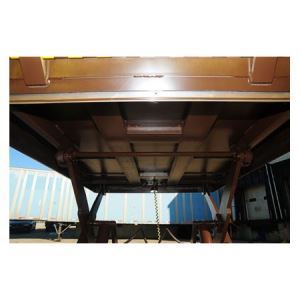

Product Details - Construction: The Loading Dock Lift checkered plate deck is constructed of heavy-gauge steel supported by structural substructure.
- Size: This unit is available in a variety of platform sizes ranging from 48" wide x 96" long to 96" wide x 144" long. The overall frame sizes range from 41" wide x 93" long to 86" wide x 118" long.
- Service Range: This series comes with lowered heights ranging from 8" to 14" and raised heights ranging from 68" to 72".
- Electrical: 460 V AC, 3 Phase, 60 Hertz is standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
- Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
- Power: The Loading Dock Lifts come standard with an external 6.5 Hp motor.

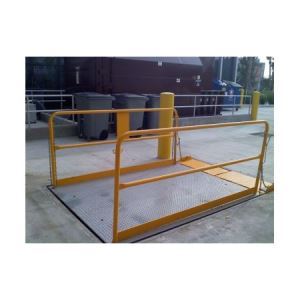

- Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
- Color: Water base enamel, ergonomic brown frame with yellow safety handrails.
- Weight: The units come in weights ranging from 3,125 to 7,436 lbs.
- Operation: Rain proof pendant 24 Vac hand control on a 4 foot - 20 foot coil cord. If power failure occurs, remove the cover off the power unit and turn a knob for manual lowering procedure.
- Capacities: Models are available in capacities ranging from 5,000 to 12,000 lbs.

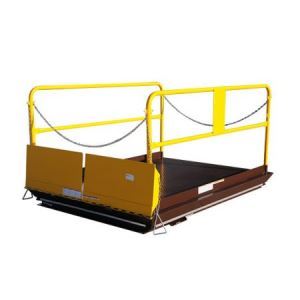

- Standard: Removable handrails with fixed toe boards come standard for the Loading Dock Lift.
- Limited Warranty: Standard Limited Warranty is 1 year from date of shipment. Warranty include parts only, warranty does not include labor, service, adjustments, consequential damage or freight damage repair. See Beacon for warranty details. Warranty is valid after full payment is made for the loading dock lifts.
- Note: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
