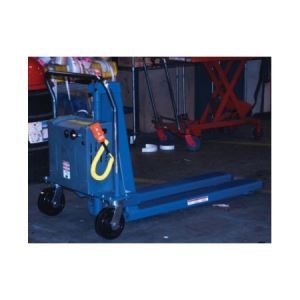

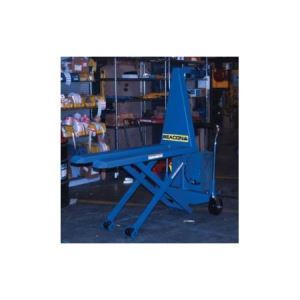

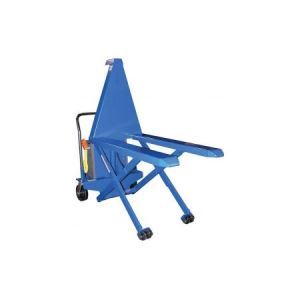

Hydraulic Skid Truck - Beacon® BHIPM Series
The Hydraulic Skid Truck - Portable Lift Truck is designed to reduce injury and lessen muscle fatigue by lifting work materials to the operator's height. This unit with a small portable design is made to raise crates, bins, and skids without an understructure. It allows the lifting of heavy loads by electric hydraulic power and the manual transportation of these loads without the use of a fork truck. The -DC series uses 12V DC power and comes standard with an on-board battery charger. AC and air-powered models are also available. Each model has a safety foot brake, which can be set during loading and unloading. Built into the power unit is a key-operated on/off switch for increased security.
Product Details - Size: Models are available with fork sizes of 27" wide x 48" long and 20" wide x 48" long.
- Service Range: Each unit has a service range of 3-1/2" to 31".
- Weight: This product comes in weights ranging from 385 to 604 lbs.
- Capacity: This series has a capacity of 2,500 lbs.
- Options: Hydraulic Skid Truck options include a solid platform, a battery charge indicator gauge (DC units only), a manual floor lock.
- Limited Warranty: One year structural and electrical.
