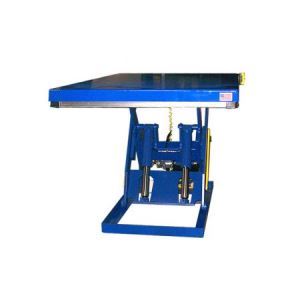

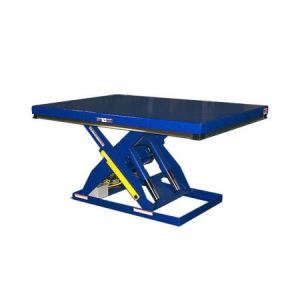

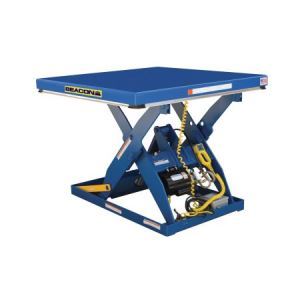

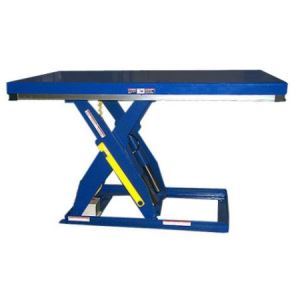

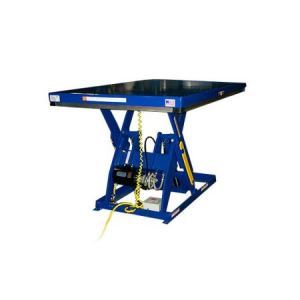

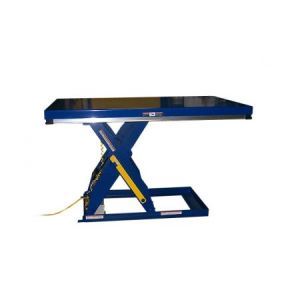

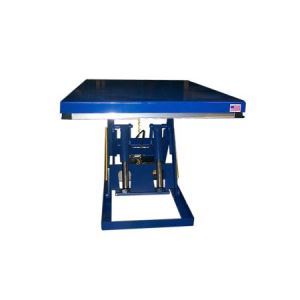

Hydraulic Lift - Beacon® BEHLT Series
The Hydraulic Lift engineering technology is designed to raise materials to the proper ergonomic height for the worker. This unit is excellent for repetitive motion at many industrial locations including manufacturing and assembly facilities.
Product Details - Construction: The Hydraulic Lift is manufactured of high-quality welded steel construction utilizing electric hydraulic power operation for long term efficiency.
- Size: The units have deck widths ranging from 24" up to 72". Actual lengths range from 48" up to 144".

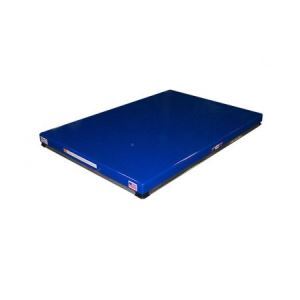

- Service Range: The industrial lift table models have lowered heights ranging from 7" to 12" and raised heights ranging from 43" to 82".
- Electrical: This unit is supplied with an internal 2 Hp motor, 56 frame, 460V AC, 3 Phase, 60 Hertz is standard. (Optional electrical changes are available including Voltage, Phase, and Hertz at an additional charge).
- Power: The Hydraulic Lift is powered up and gravity down. Travel up speed times are based on a 460 Vac, 3-phase motor.
- Color: Standard finish is Beacon Blue water-based paint. Options include other water base colors, powder coat, Steel-It Polyurethane Coating, Line-X Polyurea/Polyurethane Coating, and ZRC Cold Galvanized Compound Coating.
- Weight: 945 to 2,415 lbs.
- Operation: One to four hydraulic cylinders control the vertical deck movement. This series features lifetime-lubricated bearings and an integral maintenance prop. Travel times range from 7 to 48 seconds.
- Capacities: 1,000 lbs. to 12,000 lbs.
- Standard: Standard safety features include electric pinch point protection, internal brass velocity fuse, 24 V AC push-button control, a hinged maintenance prop, and an upper travel limit switch. Smooth steel plate deck surface.
- Options: Hydraulic Lift units are available with an optional foot control. Other options include skirting, a 42" high self-locking gate, a warning light, and a warning beeper. Select any model number to view all optional upgrades. Steel treadplate deck surface.
- Limited Warranty: One-year structural, hydraulics, and electrical. To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.

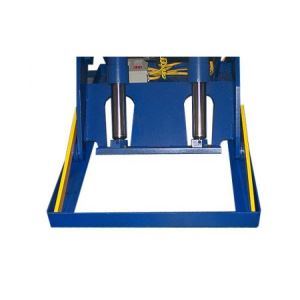

- Note: The BEHLT series is supplied with electric toe guards as standard, when ordering the accordion skirt option, electric toe guards are not supplied because of the accordion skirt installation process.
