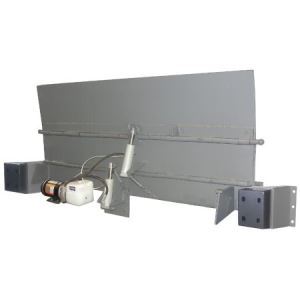

Hydraulic Edge of Dock Leveler - Beacon® BHED Series
The technology Hydraulic Edge of Dock Leveler compensates for uneven heights between dock and truck. This durable and heavy-duty type of unit is commonly used in distribution centers. The BHED series features the ease of push of a button control to operate the leveler providing efficiency and safety.
Product Details - Construction: The series is constructed of heavy-duty steel.
- Size: Models feature deck widths of 66", 72", 78” or 84". This series has a span of 27-3/4".
- Operating Range: Features 5" above and 5" below the loading dock as operating range.
- Electrical: 115 V AC, 1 Phase, 60 Hz is standard. Other electrical options are available.
- Installation: Hydraulic Edge of dock levelers are anchored to the edge of the loading dock either by totally welding the unit to the dock edge (via an embedded C channel) or by some combination of weld on / bolt on such as an embedded curb angle.
- Color: Finish - Enamel base gray paint.
- Operation: These units are operated with a selector switch control.
- Capacities: Available in capacities of 20,000, 25,000, 30,000 or 35,000 lbs.
- Standard: The Hydraulic Edge of Dock Leveler comes standard with a 15" hinged lip as well as dock bumpers.
- Limited Warranty: Limited warranty: 2 years on structure and 1 years on parts.
- Note: There is no pit work required. The levelers simply weld to the building 8" imbedded channel or to the optional formed angle and approach plate.
