Beacon Industries, Inc. -Hydraulic Box Dumpers - Beacon® BHBD Series

DOWNLOADS

Beacon® Hydraulic Box Dumpers - Container Dumper are built to last with a durable heavy duty steel design. Push button control enables one person for dump industrial-use containers up to 135 degrees. Designed and available with several different dump heights.


Category: container lifts | conveyors | drum lift jacks...

MasterFormat: Piece Material Handling Equipment | Conveyors


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

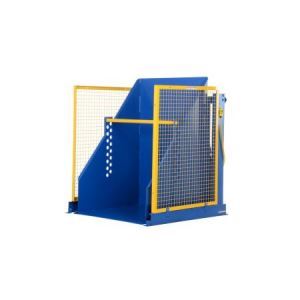

Hydraulic Box Dumpers - Beacon® BHBD Series

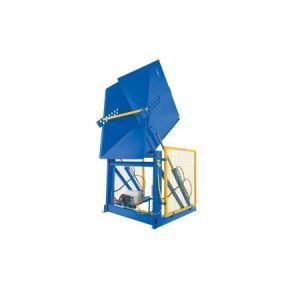

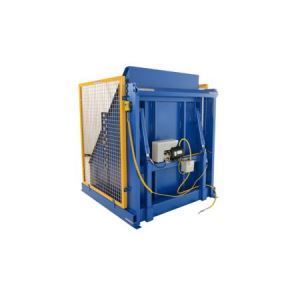

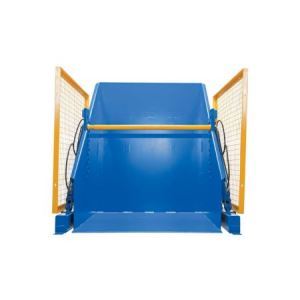

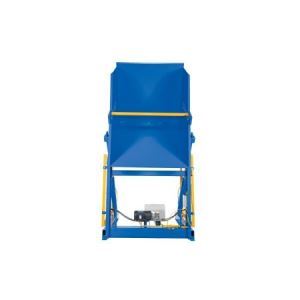

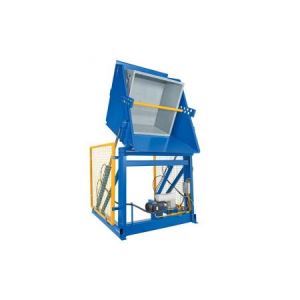

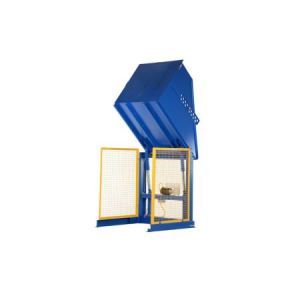

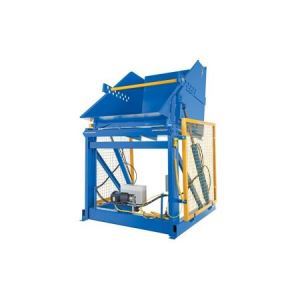

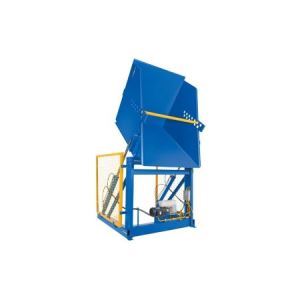

Beacon® Hydraulic Box Dumpers - Container Dumper are built to last with a durable heavy duty steel design. Push button control enables one person for dump industrial-use containers up to 135 degrees. Designed and available with several different dump heights. The special lowered height of only 3/8" enables a pallet truck to load or unload. The retaining bars are designed to adjust every 2" to accommodate many container heights.

Product Details
  • Construction: Features heavy-duty welded steel construction. Contact Beacon regarding additional hold-down bar heights
  • Projection: Chute reach projection is 10" when fully rotated.
  • Size: The models are available in different sizes ranging from 69" wide x 68-1/2" long to 69" wide x 69" long. The chute on all units is 51-1/2" x 50". Special size units are available.
  • Service Range: The unit's maximum rotation is 135 degrees.
  • Dump Heights: Unit dump heights are 36", 48" and 60".
  • Lift Heights: Level heights on the unit are 53-1/2", 65" and 77". Rotated heights are 111", 129-1/2" and 149-1/2".
  • Electrical: The unit is powered by an internal 2 Hp motor (5 Hp motor on 6,000 lb. models). 460V AC, 3 Phase, 60 Hz is standard. Other electrical options are available.
  • Color: This series has a painted blue finish.
  • Weight: Varying weights among models range from 1,564 to 2,021 lbs.
  • Operation: The worker controls the rotation up and down simply with a hand-held push button control console.
  • Capacities: Models features capacities of 2,000, 4,000 or 6,000 lbs.
  • Standard: The units come standard with a 24v pendant hand-held control on an 8' cord. Its structural frame includes protective mesh side screens.
  • Options: A foot control is optional. Other options for Hydraulic Box Dumpers include different Beacon finishes, a 4-button control for a rotary air/oil power unit.
  • Note: All standard and special box dumper chutes are stitch welded. Special continuous welds for liquid tight available at additional charge.
Hydraulic Box Dumpers Questions and Answers


See More


Specifications

Hydraulic Box Dumpers - BHBD Series
Model No.Dump HeightHold DownsLevel HeightUsable Chute (W x L)Rotated HeightCapacity (LBS)Overall (W x L)Price
1) BHBD-2-3636"18"-36"53½"52"x50"111"2,00069"x68½"$10,469.37
2) BHBD-2-4848"18"-42"65"52"x50"129½"2,00069"x68½"$11,907.92
3) BHBD-2-6060"18"-50"77"52"x50"149½"2,00069"x68½"$12,845.83
4) BHBD-4-3636"18"-36"53½"52"x50"111"4,00069"x68½"$12,911.71
5) BHBD-4-4848"18"-42"65"52"x50"129½"4,00069"x68½"$13,319.05
6) BHBD-4-6060"18"-50"77"52"x50"149½"4,00069"x68½"$14,211.13
7) BHBD-6-3636"18"-36"53½"52"x50"111"6,00069"x69"$14,428.27
8) BHBD-6-4848"18"-42"65"52"x50"129½"6,00069"x69"$14,634.05
9) BHBD-6-6060"18"-50"77"52"x50"149½"6,00069"x69"$14,932.60
OPTION
Model No.DescriptionPrice
10) BFC-2Foot Control$306.30
11) BHBD-6-ROTARY-DA-HHPBDA - 4-button control for rotary air/oil power unit (BHBD-6) (warranty void if used W/O Filter - Regulator - Lubricator (FRL)) (call BEACON for db rating)$1,054.07
12) BHBD-GATE-36Steel Hydraulic box dumper gate 25-1/2" x 92". Yellow$3,845.49
13) BHBD-Gate-48Steel Hydraulic box dumper gate 33-1/4" x 92". Yellow$4,110.55
14) BHBD-GATE-60Steel Hydraulic box dumper gate 41-1/2" x 92". Yellow$4,213.97
15) BHBD-PU-XExtended duty power for 6,000 lbs capacity hydraulic box dumper.$8,292.89
