Overview

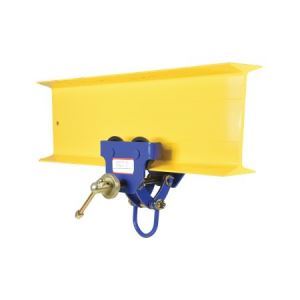

Hoist Trolley - Bear Claw® BQIT Series

Each multipurpose Hoist Trolley is adjustable and will fit virtually any S, H, M, W or I type beam. The manual screw mechanism can be tightened to prevent unwanted movement of the trolley. A lifting eye is located at the bottom of the unit for attaching a hoist (not included).

Product Details
  • Construction: Hoist Trolley features all steel construction.
  • Size: This series fits beam flange widths from 2" to 11-3/4" and have a headroom up to 13-7/8".
  • Color: All models feature a Beacon Blue painted finish.
  • Weight: The Hoist Trolley weighs from 13 to 70 lbs.
  • Operation: The unit is adjusted with a manual screw mechanism.
  • Capacity: Models feature capacities of up to 12,000 lbs.
  • Standard: Hoist Trolley price includes four rollers with sealed bearings and a locking ring to prevent the width from changing accidentally.
  • Note: Hoists are not included.


See More


Specifications

Bear Claw® Hoist Trolley - BQIT Series
Model No.Fit Flange WidthHeadroomCapacity(LBS)Price
1) BQIT-032" to 4½"6¾"300$182.69
2) BQIT-062" to 4½"6¾"600$191.69
3) BQIT-12" to 4½"6¾"1,000$194.86
4) BQIT-23" to 5"8⅛"2,000$212.83
5) BQIT-43" to 7½"10"4,000$297.54
6) BQIT-63" to 7½"10⅜"6,000$386.64
7) BQIT-84" to 11¾"13⅞"8,000$487.98
8) BQIT-104" to 11¾"13⅞"10,000$604.23
9) BQIT-124" to 11¾"13⅞"12,000$652.60
