Overview

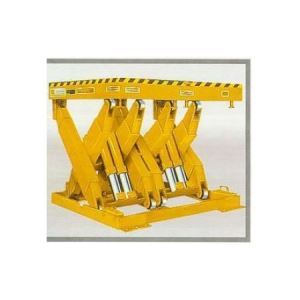

Heavy Capacity Scissor Lift - Beacon® BMLTDW Series

The double-wide Heavy Capacity Scissor Lift engineering technology is an electro-hydraulic high-capacity scissor lift. These Heavy Duty Lift Table models feature a smooth steel platform. They also feature dual safety restraint bars. This unit is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing.

Product Details

Construction: Features steel construction.
Projection: For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
Size: The series comes in various standard platform sizes ranging from 96" x 60" to 96" x 108" and in maximum platform sizes ranging from 120" x 84" to 120" x 132".
Service Range: The Heavy Capacity Scissor Lift unit comes in lowered heights of 16" or 20" and in a variety of raised heights ranging from 46" to 92".
Electrical: 460 V AC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight: Models come in a variety of weights ranging from 6,000 to 10,400 lbs.
Scope: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
Capacity: Models are available in a variety of capacities ranging from 25,000 to 60,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
Standard: Smooth steel plate deck surface.
Options: Steel treadplate deck surface.
Limited Warranty: To keep the Heavy Capacity Scissor Lift warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.

See More

See Less

Specifications

Heavy Capacity Scissor Lift - BMLTDW Series

Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series	Heavy Capacity Scissor Lift - BMLTDW Series
Model No.	Travel (inches)	Cap Lbs	Axle Load Max, Concentrated	Platform Std.	Platform Max.	Base	Lowered Height (inches)	Raised Height (inches)	Approx Up Speed	Motor HP	Scissor Lift Survey Sheet Required for Quote	Note	Price
1) BMLTDW-25-30	30	25000	20000	96x60	120x84	96x60	16	46	30	5	Yes	A	$118,138.81
2) BMLTDW-30-30	30	30000	24000	96x60	120x84	96x60	16	46	30	5	Yes	A	Call for Quote
3) BMLTDW-35-30	30	35000	28000	96x60	120x84	96x60	16	46	50	5	Yes	A	Call for Quote
4) BMLTDW-40-30	30	40000	32000	96x60	120x84	96x60	20	50	50	5	Yes	A	Call for Quote
5) BMLTDW-50-30	30	50000	40000	96x60	120x84	96x60	20	50	70	5	Yes	A	Call for Quote
6) BMLTDW-60-30	30	60000	48000	96x60	120x84	96x60	20	50	70	5	Yes	A	Call for Quote
7) BMLTDW-25-36	36	25000	20000	96x60	120x84	96x60	16	52	32	5	Yes	A	Call for Quote
8) BMLTDW-30-36	36	30000	24000	96x60	120x84	96x60	16	52	32	5	Yes	A	Call for Quote
9) BMLTDW-35-36	36	35000	28000	96x60	120x84	96x60	16	52	55	5	Yes	A	Call for Quote
10) BMLTDW-40-36	36	40000	32000	96x60	120x84	96x60	20	56	55	5	Yes	A	Call for Quote
11) BMLTDW-50-36	36	50000	40000	96x60	120x84	96x60	20	56	75	5	Yes	A	Call for Quote
12) BMLTDW-60-36	36	60000	48000	96x60	120x84	96x60	20	56	75	5	Yes	A	Call for Quote
13) BMLTDW-25-42	42	25000	20000	96x72	120x96	96x72	16	58	30	5	Yes	A	Call for Quote
14) BMLTDW-30-42	42	30000	24000	96x72	120x96	96x72	16	58	30	5	Yes	A	Call for Quote
15) BMLTDW-35-42	42	35000	28000	96x72	120x96	96x72	16	58	50	5	Yes	A	Call for Quote
16) BMLTDW-40-42	42	40000	32000	96x72	120x96	96x72	20	62	50	5	Yes	A	Call for Quote
17) BMLTDW-50-42	42	50000	40000	96x72	120x96	96x72	20	62	70	5	Yes	A	Call for Quote
18) BMLTDW-60-42	42	60000	48000	96x72	120x96	96x72	20	62	70	5	Yes	A	Call for Quote

Heavy Capacity Scissor Lift - BMLTDW Series (continued)

Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)	Heavy Capacity Scissor Lift - BMLTDW Series (continued)
Model No.	Travel (inches)	Cap Lbs	Axle Load Max, Concentrated	Platform Std.	Platform Max.	Base	Lowered Height (inches)	Raised Height (inches)	Approx Up Speed	Motor HP	Scissor Lift Survey Sheet Required for Quote	Note	Price
19) BMLTDW-25-48	48	25000	20000	96x72	120x96	96x72	16	64	30	5	Yes	A	Call for Quote
20) BMLTDW-30-48	48	30000	24000	96x72	120x96	96x72	16	64	30	5	Yes	A	Call for Quote
21) BMLTDW-35-48	48	35000	28000	96x72	120x96	96x72	16	64	55	5	Yes	A	Call for Quote
22) BMLTDW-40-48	48	40000	32000	96x72	120x96	96x72	20	68	55	5	Yes	A	Call for Quote
23) BMLTDW-50-48	48	50000	40000	96x72	120x96	96x72	20	68	75	5	Yes	A	Call for Quote
24) BMLTDW-60-48	48	60000	48000	96x72	120x96	96x72	20	68	75	5	Yes	A	Call for Quote
25) BMLTDW-25-54	54	25000	20000	96x84	120x108	96x84	16	70	40	5	Yes	A	Call for Quote
26) BMLTDW-30-54	54	30000	24000	96x84	120x108	96x84	16	70	40	5	Yes	A	Call for Quote
27) BMLTDW-35-54	54	35000	28000	96x84	120x108	96x84	16	70	75	5	Yes	A	Call for Quote
28) BMLTDW-40-54	54	40000	32000	96x84	120x108	96x84	20	74	75	5	Yes	A	Call for Quote
29) BMLTDW-50-54	54	50000	40000	96x84	120x108	96x84	20	74	100	7.5	Yes	A	Call for Quote
30) BMLTDW-60-54	54	60000	48000	96x84	120x108	96x84	20	74	100	7.5	Yes	A	Call for Quote
31) BMLTDW-25-60	60	25000	20000	96x84	120x108	96x84	16	76	45	5	Yes	A	Call for Quote
32) BMLTDW-30-60	60	30000	24000	96x84	120x108	96x84	16	76	45	5	Yes	A	Call for Quote
33) BMLTDW-35-60	60	35000	28000	96x84	120x108	96x84	16	76	80	5	Yes	A	Call for Quote
34) BMLTDW-40-60	60	40000	32000	96x84	120x108	96x84	20	80	80	5	Yes	A	Call for Quote
35) BMLTDW-50-60	60	50000	40000	96x84	120x108	96x84	20	80	100	7.5	Yes	A	Call for Quote
36) BMLTDW-60-60	60	60000	48000	96x84	120x108	96x84	20	80	100	7.5	Yes	A	Call for Quote

Heavy Capacity Scissor Lift - BMLTDW Series (continued)

Heavy Capacity Scissor Lift - BMLTDW Series (continued)

Model No.

Travel (inches)

Cap Lbs

Axle Load Max, Concentrated

Platform Std.

Platform Max.

Base

Lowered Height (inches)

Raised Height (inches)

Approx Up Speed

Motor HP

Scissor Lift Survey Sheet Required for Quote

Note

Price

37) BMLTDW-25-72

25000

20000

96x108

120x132

96x108

Yes

Call for Quote

38) BMLTDW-30-72

30000

24000

96x108

120x132

96x108

Yes

Call for Quote

39) BMLTDW-35-72

35000

28000

96x108

120x132

96x108

Yes

Call for Quote

40) BMLTDW-40-72

40000

32000

96x108

120x132

96x108

Yes

Call for Quote

41) BMLTDW-50-72

50000

40000

96x108

120x132

96x108

100

7.5

Yes

Call for Quote

42) BMLTDW-60-72

60000

48000

96x108

120x132

96x108

100

7.5

Yes

Call for Quote

Notes:
A: Standard platforms only. **Load that can be rolled over the side or end in any raised position. (Standard platform only.) ***See Options
