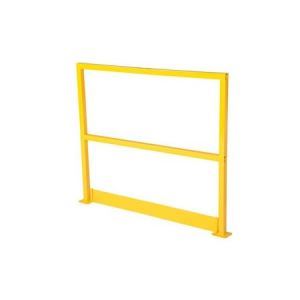

Handrail Systems - Beacon® BSQ-TB Series

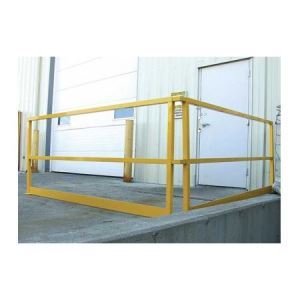

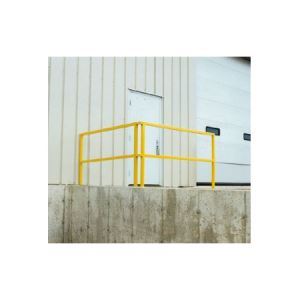

The Handrail Systems are an excellent way to protect workers, buildings, and machinery. These units are ideal for walkways, loading docks, mezzanines, and floor openings. This series is available with or without toe boards.
Product Details - Construction: These units are constructed from steel.
- Size: This series features 1-1/2" square tube, a 42" overall height and a 21-3/16" mid-rail height. The units come in various lengths ranging from 48" to 120". Toe boards are 4" high and are 43-1/2" to 111" long.
- Installation: Hardware is not included with units unless noted. Railing sections ending in -HWR come with hardware standard. Options BCSEC, BM-BUMP, and BC-CON include hardware as well.
- Color: This series is coated with a highly visible Beacon safety yellow powder coat finish.
- Weight: This product is available in a variety of weights ranging from 44 to 108 lbs. Options weigh from 1 lb. to 43 lbs.
- Standard: The BSQ series includes 8 bolt holes for installation.

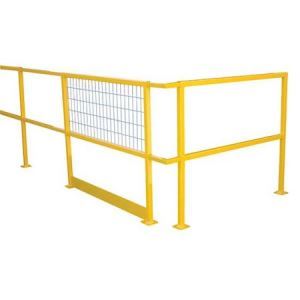

- Options: Handrail Systems options include bolted-on wire mesh, connection tubing and corner connectors, 4" high toe boards, sliding gates for easy access, bumpers, anchor bolts, and end caps. Toe boards have 2 brackets, 4" long x 3/4" high and 7/16" in diameter.
- Note: Series BCSEC and BC-CON are sold as pairs. Toe board model BTOE-B-120-N is sold as two pieces, each 55-1/2" long. Optional connection tubes measure 1-1/4" in diameter.
See More
See Less

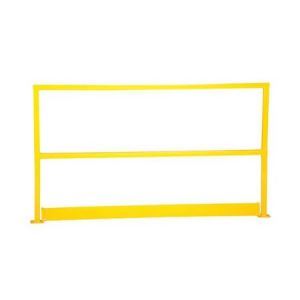

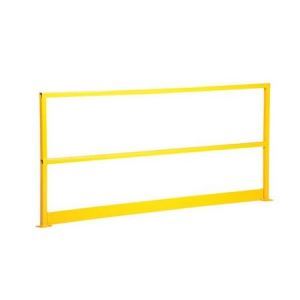

Handrail Systems - With Toeboard - BSQ-TB Series
| Model No. | Square Tubing Diameter | Overall Height | Mid-Rail Height | Usable Length | Price |
| 1) BSQ-48-TB | 1½" | 42" | 21-3/16" | 48" | $246.72 |
| 2) BSQ-60-TB | 1½" | 42" | 21-3/16" | 60" | $309.24 |
| 3) BSQ-72-TB | 1½" | 42" | 21-3/16" | 72" | $344.68 |
| 4) BSQ-84-TB | 1½" | 42" | 21-3/16" | 84" | $408.61 |
| 5) BSQ-96-TB | 1½" | 42" | 21-3/16" | 96" | $458.11 |
| 6) BSQ-108-TB | 1½" | 42" | 21-3/16" | 108" | $521.99 |
| 7) BSQ-120-TB | 1½" | 42" | 21-3/16" | 120" | $573.13 |
Handrail Systems - No Toeboard - With Hardware - BSQ-HWR Series
| Model No. | Square Tubing Diameter | Overall Height | Mid-Rail Height | Usable Length | Price |
| 8) BSQ-48-TB-HWR | 1½" | 42" | 21-3/16" | 48" | $246.72 |
| 9) BSQ-60-TB-HWR | 1½" | 42" | 21-3/16" | 60" | $309.24 |
| 10) BSQ-72-TB-HWR | 1½" | 42" | 21-3/16" | 72" | $344.68 |
| 11) BSQ-84-TB-HWR | 1½" | 42" | 21-3/16" | 84" | $408.61 |
| 12) BSQ-96-TB-HWR | 1½" | 42" | 21-3/16" | 96" | $458.11 |
| 13) BSQ-108-TB-HWR | 1½" | 42" | 21-3/16" | 108" | $521.99 |
| 14) BSQ-120-TB-HWR | 1½" | 42" | 21-3/16" | 120" | $573.13 |
Handrail Systems - No Toeboard - With Hardware - BSQ-HWR Series (continued)
| Model No. | Square Tubing Diameter | Overall Height | Mid-Rail Height | Usable Length | Price |
| 15) BSQ-48-HWR | 1½" | 42" | 21-3/16" | 48" | $204.12 |
| 16) BSQ-60-HWR | 1½" | 42" | 21-3/16" | 60" | $248.16 |
| 17) BSQ-72-HWR | 1½" | 42" | 21-3/16" |
72" | $280.74 |
| 18) BSQ-84-HWR | 1½" | 42" | 21-3/16" | 84" | $331.81 |
| 19) BSQ-96-HWR | 1½" | 42" | 21-3/16" | 96" | $371.70 |
| 20) BSQ-108-HWR | 1½" | 42" | 21-3/16 | 108" | $435.56 |
| 21) BSQ-120-HWR | 1½" | 42" | 21-3/16" | 120" | $472.41 |

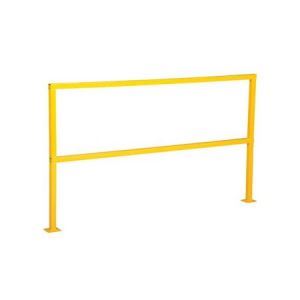

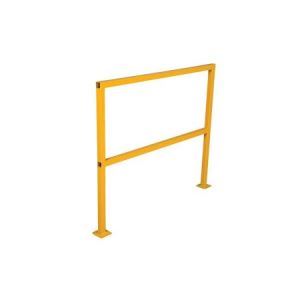

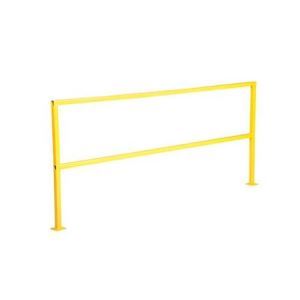

Handrail Systems - No Toeboard - BSQ Series
| Model No. | Square Tubing Diameter | Overall Height | Mid-Rail Height | Usable Length | Price |
| 22) BSQ-48 | 1½" | 42" | 21-3/16" | 48" | $204.12 |
| 23) BSQ-60 | 1½" | 42" | 21-3/16" | 60" | $248.16 |
| 24) BSQ-72 | 1½" | 42" | 21-3/16" | 72" | $280.74 |
| 25) BSQ-84 | 1½" | 42" | 21-3/16" | 84" | $331.81 |
| 26) BSQ-96 | 1½" | 42" | 21-3/16" | 96" | $371.70 |
| 27) BSQ-108 | 1½" | 42" | 21-3/16" | 108" | $435.56 |
| 28) BSQ-120 | 1½" | 42" | 21-3/16" | 120" | $472.41 |
OPTION
| Model No. | Description | Overall Height | Length | Price | | |
| 29) BWM-48 | Wire Mesh (bolted on) | 22" | 48" | $114.79 | | |
| 30) BWM-60 | Wire Mesh (bolted on) | 22" | 60" | $121.82 | | |
| 31) BWM-72 | Wire Mesh (bolted on) | 22" | 72" | $133.25 | | |
| 32) BWM-84 | Wire Mesh (bolted on) | 22" | 84" | $148.80 | | |
| 33) BWM-96 | Wire Mesh (bolted on) | 22" | 96" | $165.87 | | |
| 34) BWM-108 | Wire Mesh (bolted on) | 22" | 108" | $184.38 | | |
| 35) BWM-120 | Wire Mesh (bolted on) | 22" | 120" | $201.28 | | |
| Model No. | Description | Overall Height | Length | Price | | |
| 36) BTOE-B-48-N | 4" High Toeboard | 4" | 43½" | $62.96 | | |
| 37) BTOE-B-60-N | 4" High Toeboard | 4" | 55½" | $67.34 | | |
| 38) BTOE-B-72-N | 4" High Toeboard | 4" | 67½" | $80.05 | | |
| 39) BTOE-B-84-N | 4" High Toeboard | 4" | 79½" | $95.35 | | |
| 40) BTOE-B-96-N | 4" High Toeboard | 4" | 91½" | $101.56 | | |
| 41) BTOE-B-108-N | 4" High Toeboard | 4" | 99" | $115.28 | | |
| 42) BTOE-B-120-N | 4" High Toeboard | 4" | 111" | $138.66 | | |
| Model No. | Description | Square Tubing Diameter | Length | Price Per | Price | |
| 43) BCSEC-48 | Connecting Tube with Hardware | 1¼" | 47⅞" | | $146.01 | |
| 44) BCSEC-60 | Connecting Tube with Hardware | 1¼" | 59⅞" | | $158.72 | |
| 45) BCSEC-72 | Connecting Tube with Hardware | 1¼" | 71⅞" | | $164.55 | |
| 46) BCSEC-84 | Connecting Tube with Hardware | 1¼" | 83⅞" | | $181.56 | |
| 47) BCSEC-96 | Connecting Tube with Hardware | 1¼" | 95⅞" | | $184.42 | |
| 48) BCSEC-108 | Connecting Tube with Hardware | 1¼" | 108" | | $232.49 | |
| 49) BCSEC-120 | Connecting Tube with Hardware | 1¼" | 120" | | $302.11 | |
| Model No. | Description | Price | | | | |
| 50) BC-CON | Corner Connectors with hardware (Price per pair) | $56.82 | | | | |
| 51) BS-GATE-60 | 60" Sliding Gate | $278.11 | | | | |
| 52) BM-BUMP | 72" long x 10" high plastic bumper (hardware included) | $223.31 | | | | |
| 53) BSQ-CAP | Black End Cap | $4.31 | | | | |
| Model No. | Description | Sleeve Diameter | Overall Length | Sleeve Length | For Use With | Price |
| 54) BAS-383 | Concrete Anchor Bolts Installation Hardware (Single) | ⅜" | 3" | 1" | BSQ series | $12.39 |
| 55) BAS-383-4PK | Concrete Anchor Bolts Installation Hardware (4-Pack) | ⅜" | 3" | 1" | BSQ series | $17.90 |
