Beacon Industries, Inc. -Front End Hopper - Beacon® BHDROP Series

DOWNLOADS

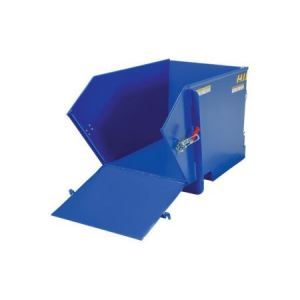

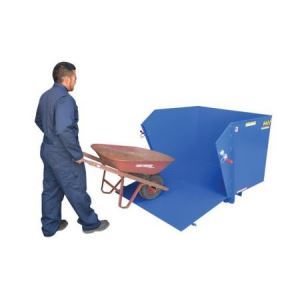

This Front End Hopper has a drop-down front for easy loading of loose materials. Loading and unloading is made easy by lowering the unit’s ramp. Features full 90 degree dumping.

Product Details
  • Construction: Steel construction

Category: container lifts | drum lift jacks | hoppers...

MasterFormat: Conveyors | Material Storage | Bulk Material Storage...



Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Front End Hopper - Beacon® BHDROP Series

This Front End Hopper has a drop-down front for easy loading of loose materials. Loading and unloading is made easy by lowering the unit’s ramp. Features full 90 degree dumping.

Product Details
  • Construction: Steel construction
  • Size: 30"x 46-1/4"x 18-7/16"
  • Color: Powder coat finish in Beacon blue.
  • Weight: 169 pounds.
  • Capacity: 2,000 pound capacity.
  • Standard: This Front End Hopper includes a cable to enable the forklift operator to operate the unit remotely. When lowered to the ground, the unit returns to the original position automatically.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.


See More


Specifications

Front End Hopper - BHDROP Series
Model No.Volume Cubic YardsCapacity (lbs)Overall Size (WxLxH)Net Wt. (lbs)Price
1) BHDROP-25-LD¼200030"x 46¼"x 18-7/16"169$1,511.07
2) BHDROP-50-LD½200030"x51⅝"x28-7/16"322$1,670.90
3) BHDROP-100-LD1200052-15/16"x51⅝"x28-7/16"344$1,966.22
4) BHDROP-150-LD200054-3/16"x51-13/16"x40⅛"382$2,188.87
5) BHDROP-25-MD¼400030"x46"x18"212$1,570.92
6) BHDROP-50-MD½400030"x51¼"x28"263$1,740.73
7) BHDROP-100-MD1400054-3/16"x51-13/16"x40⅛"367$2,019.06
8) BHDROP-150-MD400030"x46¼"x18-7/16"453$2,397.22
9) BHDROP-25-HD¼600030"x51⅝"x 28-7/16"212$1,673.62
10) BHDROP-50-HD½600052-15/16"x 51⅝"x 28-7/16"274$1,856.45
11) BHDROP-100-HD1600052-15/16"x 51⅝"x 28-7/16"397$2,250.15
12) BHDROP-150-HD600054-3/16"x 51-13/16"x 40⅛"472$2,729.76
