Fork Mounted Dumper - Beacon® BTCD-FM Series

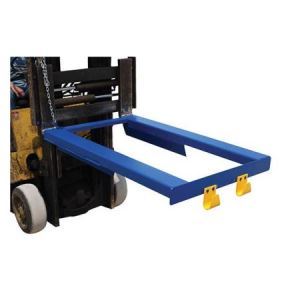

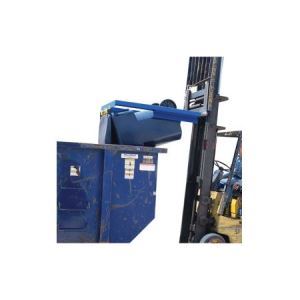

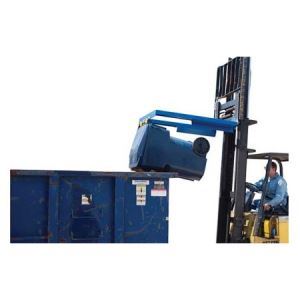

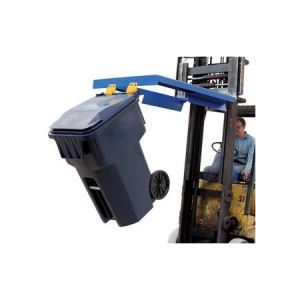

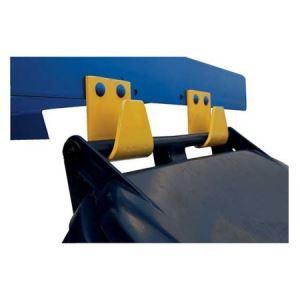

The convenient Fork Mounted Dumper features a simple dumping design without moving parts. These units feature adjusting hooks for refuse can pickup and don't require the fork truck driver to leave the fork truck seat to lift, transport, and empty waste cans. Sloped guides ensure that refuse container is centered during rotation.
Product Details - Construction: Fork Mounted Dumper features a welded steel construction for a long life.
- Size: This unit is 36-1/2" wide x 58-1/2" long x 7-1/2" high. The hooks are adjustable from 12" to 16". Fork pockets are 4-3/4" wide x 2" high and are on 31-3/4" centers.
- Color: This series features a Beacon blue powder coat finish with yellow hooks.
- Weight: 120 lbs.
- Capacity: This unit has a 500-lb. capacity.

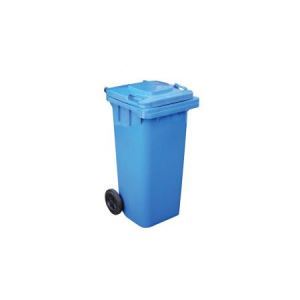

- Options: An optional trashcan, BTH-64-GY, is available for the Fork Mounted Dumper. It is 23" wide x 29" long x 41" high with a 64 gallon capacity and is designed to work with BTCD-FM-E series.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
