Beacon Industries, Inc. -Drum Tipper - Beacon® BDCT Series

DOWNLOADS

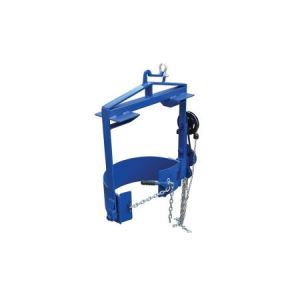

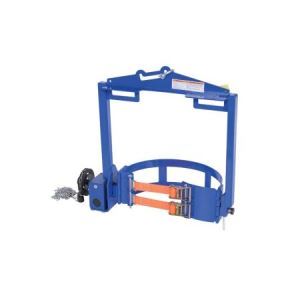

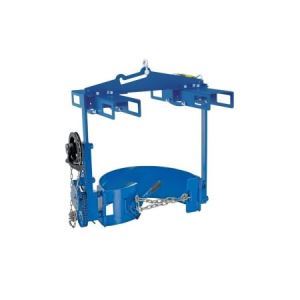

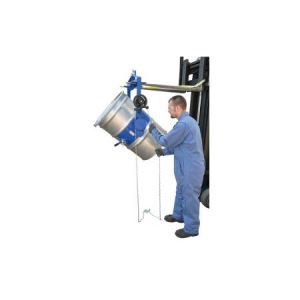

The Drum Tipper is designed to rotate and position a fully loaded 55-gallon steel drum. It features a chain crank that allows the operator to rotate 360-degree drums that are out of reach. This unit is best used with an overhead hoist. Drums are held in place with a drum lock.


Category: container lifts | conveyors | drum lift jacks...

MasterFormat: Piece Material Handling Equipment | Conveyors


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Drum Tipper - Beacon® BDCT Series

The Drum Tipper is designed to rotate and position a fully loaded 55-gallon steel drum. It features a chain crank that allows the operator to rotate 360-degree drums that are out of reach. This unit is best used with an overhead hoist. Drums are held in place with a drum lock.

Product Details
  • Size: Both models are 8" long x 33" wide x 35-5/8" high.
  • Overall Fork Width: The fork pockets are 6-1/2" wide and 2" high.
  • Overall Fork Length: The fork pockets are 8" long.
  • Color: Drum Tipper units are powder-coated Beacon Blue.
  • Weight: Models weigh either 97 or 102 lbs.
  • Operation: This product must have a full drum to rotate at the rated capacity.
  • Capacity: The series features either an 800-lb. or a 1,500-lb. capacity.
  • Standard: The Drum Tipper comes complete with fork pockets for transportation.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.


See More


Specifications

Drum Tipper - Rotator - BDCT Series
Model No.Acceptable Drum TypesRotation MethodUniform Capacity (LBS)Overall Size (W x L x H)Rotates (degrees)Fork Pocket WidthFork Pocket TypeNotePrice
1) BDCT-7555 Gallon Steel15'-Chain80033.84"x25.12"x33.75"3605"x½"x1-15/16"2 WayA$1,679.65
2) BDCT-75-4WFP55 Gallon Steel15'-Chain80033.81"x28.75"x33.75"3605"x1-9/16", 5½"x1-15/16"4 Way$1,223.45
3) BDCT-8555 Gallon Steel15'-Chain1,50033.84"x25.12"x33.75"3605"x½"x1-15/16"2 WayA$1,856.26
4) BDCT-85-4WFP55 Gallon Steel15'-Chain1,50022.81"x28.75"x33.75"3605"x1-9/16", 5½"x1-15/16"4 Way$1,623.96
5) BDCT-200055 Gallon Steel15'-Chain2,00039.68"x30"x36.37"3605"x½"x1-15/16"2 Way$3,746.45
Notes:
A: Drum must be full to rotate at rated capacity.
Drum Tipper - OPTION
Model No.DescriptionDrum SizeConstructionSize (W x L x H)Accepts Drum TypeNotePrice
6) BFDA-250Drum Adapter nylon strap to hold and support 30 gallon fiber or plastic drums with listed stacker, carrier/rotators.30 gallonNylon Strap3.37"x29.56x1.1"Fiber or Plastic Drums$50.95
7) BFDA-550Drum Adapter adjusting arm to support fiber or plastic 30 & 55 gallon drums with listed stacker, carrier/rotators.30 or 55 gallonSteel Arm4"x10"x36.75"Fiber or Plastic Drums$203.16
8) BFDA-800Drum Adapter adjusting arm and strap to hold and support 30 & 55 gallon drums with listed stackers/carriers.30 or 55 gallonSteel Arm & Nylon Strap4"x10"x36.75"Fiber or Plastic Drums$285.21
9) BFDC-30Drum Steel saddle adapter attaches to the inner rim of drum saddle to a 30 gallon steel, fiber or poly drum can be used with stacker, carriers or rotators. Must be used with adjusting arm.30 gallonSteel Saddle26.68"x21.62"x10.56"Steel, Fiber or Poly Drums$347.23
Notes:
A: Drum must be full to rotate at rated capacity.
