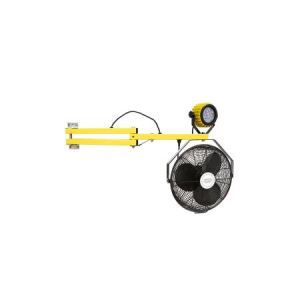

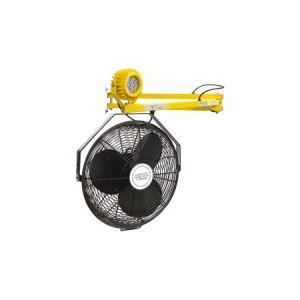

Dock Light with Fan - Beacon® Dock Light with Fan - BFANDL series
The Dock Light with Fan is a dual purpose system designed to circulate and cool air inside trailers and dock door areas while providing bright, focused illumination for safe, efficient loading and unloading operations.
Product Details - Construction: Units feature steel construction arm, with fan and dock light head.
- Size: Units are 24", 40", or 60" long.
- Operating Range: Fan specifications include an 18" diameter blade with a 3 speed motor including: High speed -3190 c.f.m at 67 dbA, Medium speed -2970 c.f.m at 58 dbA and Low speed -2660 c.f.m at 49 dbA.
- Overall Length: The unit can be mounted and installed out of the way with your choice of available arm lengths of 24", 40" or 60"
- Electrical: Voltage 115 Vac, 1 Ph, 60 Hz, with High speed at 1.65 Amps, Medium speed at 1.27 Amps and Low speed at 0.95 Amps. UL listed.
- Installation: Units mount to the wall.
- Color: Units feature a powder coat Beacon yellow finish.
- Weight: Units weigh from 30 to 38 lbs.
- Scope: This unit enhances air circulation and visibility in high loading dock door traffic work areas. Fan can be directed in any direction.
- Capacities: The fan can move 3,000 cubic feet of air per minute.
- Standard: 3 speed 18" fan.
- Materials: Lamp configurations include a durable polycarbonate lamp head available with incandescent or LED PAR 38 bulbs, a rugged metal lamp head, or a high-pressure sodium lamp head for maximum brightness and long life performance.
- Usage: The Dock Light with Fan is ideal for loading dock door areas where semi-trailers back up for loading and unloading. Commonly used in distribution centers (DCs), warehouses, production facilities, machine shops, rail car platforms, automotive shops, universities and government facilities.
- Note: The Dock Light with Fan helps cool the workspace during summer months and reduces thermal stratification in the winter, maintaining a more comfortable environment for workers. This improved air circulation also enhances energy efficiency, helping to reduce overall heating costs throughout the facility.
