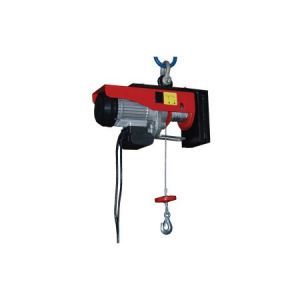

Cable Hoist - Bear Claw® BMINI Series
The Electric Cable Hoist is engineered for portable and remote lifting applications, offering flexibility for both single line and double line configurations. When used as a single line, the hoist provides a 36 foot cable length; when configured as a double line, it delivers an 18 foot lift height with increased strength. This versatile unit supports lifting capacities up to 2,000 lbs. in double line mode, making it ideal for construction sites, maintenance tasks and industrial environments where compact power and mobility are essential.
Product Details - Powered: Hand pendant control cord is 5' long for easy reach.
- Power: Includes electric motor and handle held push button control operation for ease of use.
- Installation: The mounting bracket for the Cable Hoist will attach to either 1-5/8" round pipe or 1-5/8" square tubing. When attaching a hoists to trolley an optional swivel hook plate must be ordered (trolley not included).
- Weight: The BMINI -2 weighs 26 lbs., the BMINI-4 weighs 38 lbs., the BMINI-7 weights 47 lbs. & the BMNI-10 weighs 83 lbs.
- Operation: Cable Hoist operates on 115V AC power.
- Capacity: The BMINI-2 has a single-line capacity of 200 lbs. & double-line capacity of 400 lbs. The BMINI-7 has a 400 lb. single-line capacity and a 800 lb. double-line capacity, the BMINI has a 750 lbs. single line & 1500 lbs. double line capacity & the BMNI-10 has a 1000 lb. capacity with a 2000 lb. double line capacity.
- Options: When using the Cable Hoist with a trolley (trolley not included), an optional swivel hook plate must be ordered. The optional swivel hook plate that needs to be ordered when attaching to a standard trolley is part no: BMINI-SH.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
