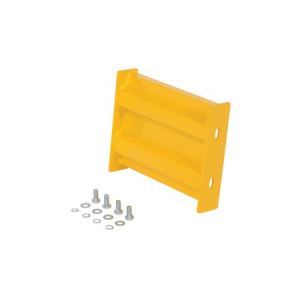

Bolt On Guard Rail - Beacon® BGR Series
Bolt On Guard Rail system helps provide a safe working environment while protecting personnel. Improve efficiency while protecting machinery, tool cribs, production line products, loading docks, aisle ways, electrical equipment and boxes, in plant management offices, clean rooms, inspection rooms, interior and exterior building structures, parking lots and outside structures. Helps reduce down time and expensive insurance claims.
Product Details - Construction: Steel Rails are heavy duty 1/8" thick steel. End and corner posts are 1/4" thick steel, available in 18", 42" and 60" high with mounting holes. Each post includes a welded 10" x 10" predrilled baseplate 5/8" thick.
- Projection: Rails are available in 2 or 3 rib heights at 12" to 113-7/8" lengths. Both the 2 and 3 rib rails have a 15" height.
- Size: Posts are 4" x 4" square with mounting holes on all 4 sides to make available straight runs or corner configuration guard rail layouts.
- Installation: Bolt On Guard Rail on site 4 bolt assembly required by others. Rail to post fasteners are included with order. Railing is easily assembled utilizing basic hand tools and a concrete drill for post anchor installation to the floor.
- Color: Standard color is safety yellow powder coat.
- Operation: Bolt On swing gates are available 29 -7/8" to 89 -7/8" long.
- Standard: Post enclosure includes plastic insert caps for a smooth finished look.
- Options: Color options are black, grey, blue and orange.
- Materials: Bolts and washers are provided with each individual rail section. Anchor bolts are purchased separately for the post mounting plate.
- Usage: Bolt on Guard Rail is designed for permanent installation.
See More
See Less
Bolt On Guard Rail - 2 Rib Style - BGR Series
| Model No. | Finish | Height | Guard Length | Rail Thickness | Rail Ribs | Rail Mounting | Mounting Posts Required | Price |
| 1) BGR-F2R-BO-1-YL | Yellow | 15" | 12" | ⅛" | 2 | Bolt On | 2 | $99.94 |
| 2) BGR-F2R-BO-2-YL | Yellow | 15" | 24" | ⅛" | 2 | Bolt On | 2 | $117.86 |
| 3) BGR-F2R-BO-3-YL | Yellow | 15" | 29 ⅞" | ⅛" | 2 | Bolt On | 2 | $165.78 |
| 4) BGR-F2R-BO-4-YL | Yellow | 15" | 41⅞" | ⅛" | 2 | Bolt On | 2 | $215.08 |
| 5) BGR-F2R-BO-5-YL | Yellow | 15" | 53⅞" | ⅛" | 2 | Bolt On | 2 | $243.42 |
| 6) BGR-F2R-BO-6-YL | Yellow | 15" | 65⅞" | ⅛" | 2 | Bolt On | 2 | $267.42 |
| 7) BGR-F2R-BO-7-YL | Yellow | 15" | 77⅞" | ⅛" | 2 | Bolt On | 2 | $301.72 |
| 8) BGR-F2R-BO-8-YL | Yellow | 15" | 89⅞" | ⅛" | 2 | Bolt On | 2 | $310.62 |
| 9) BGR-F2R-BO-9-YL | Yellow | 15" | 101⅞" | ⅛" | 2 | Bolt On | 2 | $334.49 |
| 10) BGR-F2R-BO-10-YL | Yellow | 15" | 113⅞" | ⅛" | 2 | Bolt On | 2 | $340.66 |
Bolt On Guard Rail - 3 Rib Style - BGR Series
| Model No. | Finish | Height | Guard Length | Rail Thickness | Rail Ribs | Rail Mounting | Mounting Posts Required | Price |
| 11) BGR-F3R-BO-1-YL | Yellow | 15" | 12" | ⅛" | 3 | Bolt On | 2 | $110.40 |
| 12) BGR-F3R-BO-2-YL | Yellow | 15" | 24" | ⅛" | 3 | Bolt On | 2 | $129.81 |
| 13) BGR-F3R-BO-3-YL | Yellow | 15" | 29 ⅞" | ⅛" | 3 | Bolt On | 2 | $183.72 |
| 14) BGR-F3R-BO-4-OR | Orange | 15" | 41⅞" | ⅛" | 3 | Bolt On | 2 | $219.57 |
| 15) BGR-F3R-BO-4-YL | Yellow | 15" | 41⅞" | ⅛" | 3 | Bolt On | 2 | $219.57 |
| 16) BGR-F3R-BO-5-OR | Orange | 15" | 53⅞" | ⅛" | 3 | Bolt On | 2 | $258.36 |
| 17) BGR-F3R-BO-5-YL | Yellow | 15" | 53⅞" | ⅛" | 3 | Bolt On | 2 | $258.36 |
| 18) BGR-F3R-BO-6-OR | Orange | 15" | 65⅞" | ⅛" | 3 | Bolt On | 2 | $300.30 |
| 19) BGR-F3R-BO-6-YL | Yellow | 15" | 65⅞" | ⅛" | 3 | Bolt On | 2 | $300.30 |
| 20) BGR-F3R-BO-7-OR | Orange | 15" | 77⅞" | ⅛" | 3 | Bolt On | 2 | $328.62 |
| 21) BGR-F3R-BO-7-YL | Yellow | 15" | 77⅞" | ⅛" | 3 | Bolt On | 2 | $328.62 |
| 22) BGR-F3R-BO-8-OR | Orange | 15" | 89⅞" | ⅛" | 3 | Bolt On | 2 | $359.93 |
| 23) BGR-F3R-BO-8-YL | Yellow | 15" | 89⅞" | ⅛" | 3 | Bolt On | 2 | $359.93 |
| 24) BGR-F3R-BO-9-OR | Orange | 15" | 101⅞" | ⅛" | 3 | Bolt On | 2 | $370.35 |
| 25) BGR-F3R-BO-9-YL | Yellow | 15" | 101⅞" | ⅛" | 3 | Bolt On | 2 | $370.35 |
| 26) BGR-F3R-BO-10-OR | Orange | 15" | 113⅞" | ⅛" | 3 | Bolt On | 2 | $401.92 |
| 27) BGR-F3R-BO-10-YL | Yellow | 15" | 113⅞" | ⅛" | 3 | Bolt On | 2 | $401.92 |
Bolt On Guard Rail - 3 Rib Style - BGR Series (continued)
| Model No. | Finish | Height | Guard Length | Rail Thickness | Rail Ribs | Rail Mounting | Mounting Posts Required | Price |
| 28) BGR-F3R-BO-4-HDG | Galvanized | 15" | 41⅞" | ⅛" | 3 | Bolt On | 2 | $325.66 |
| 29) BGR-F3R-BO-6-HDG | Galvanized | 15" | 65⅞" | ⅛" | 3 | Bolt On | 2 | $418.35 |
| 30) BGR-F3R-BO-8-HDG | Galvanized | 15" | 89⅞" | ⅛" | 3 | Bolt On | 2 | $507.87 |
| 31) BGR-F3R-BO-10-HDG | Galvanized | 15" | 113⅞" | ⅛" | 3 | Bolt On | 2 | $602.16 |
Bolt On Guard Rail Style Post- BGR Series
| Model No. | Finish | Post Height | Guard Rail Level Quantity | Rail Thickness | Rail Ribs | Rail Mounting | Mounting Posts Required | Price |
| 32) BGR-F2R-BO-TP18-YL | Yellow | 18" | 1 | ⅛" | 2 | Bolt On | | $177.59 |
| 33) BGR-F2R-BO-TP42-YL | Yellow | 42" | 2 | ⅛" | 2 | Bolt On | | $243.47 |
| 34) BGR-F2R-BO-TP60-YL | Yellow | 60" | 3 | ⅛" | 2 | Bolt On | | $331.87 |
| 35) BGR-F2R-BO-TP72-YL | Yellow | 72" | 4 | ⅛" | 2 | Bolt On | | $377.38 |
| 36) BGR-F3R-BO-TP18-OR | Orange | 18" | 1 | ⅛" | 3 | Bolt On | | $177.59 |
| 37) BGR-F3R-BO-TP42-OR | Orange | 42" | 2 | ⅛" | 3 | Bolt On | | $243.47 |
| 38) BGR-F3R-BO-TP18-YL | Yellow | 18" | 1 | ⅛" | 3 | Bolt On | | $177.59 |
| 39) BGR-F3R-BO-TP42-YL | Yellow | 42" | 2 | ⅛" | 3 | Bolt On | | $243.47 |
| 40) BGR-F3R-BO-TP60-YL | Yellow | 60" | 3 | ⅛" | 3 | Bolt On | | $331.87 |
| 41) BGR-F3R-BO-TP72-YL | Yellow | 65⅞ | 4 | ⅛" | 3 | Bolt On | | $377.38 |
| 42) BGR-F3R-BO-TP18-HDG | Galvanized | 18" | 1 | ⅛" | 3 | Bolt On | | $238.86 |
| 43) BGR-F3R-BO-TP42-HDG |
Galvanized | 42" | 2 | ⅛" | 3 | Bolt On | | $312.21 |
Single Rail Swing Gate for 3 Rib Guard Rail - BGR Series
| Model No. | Finish | Height | Guard Length | Rail Thickness | Rail Ribs | Base Plate | Price |
| 44) BGR-F3R-GBS-3-YL | Yellow with Black Hinge | 15" | 29 ⅞" | ⅛" | 3 | 10"x10" | $323.48 |
| 45) BGR-F3R-GBS-4-YL | Yellow with Black Hinge | 15" | 41 ⅞" | ⅛" | 3 | 10"x10" | $353.20 |
Double Rail Swing Gate for 3 Rib Guard Rail - BGR Series
| Model No. | Finish | Height | Guard Length | Rail Thickness | Rail Ribs | Base Plate | Price |
| 46) BGR-F3R-GBD-3-YL | Yellow with Black Hinge | 15" | 29 ⅞" | ⅛" | 3 | 10"x10" | $666.85 |
| 47) BGR-F3R-GBD-4-YL | Yellow with Black Hinge | 15" | 41 ⅞" | ⅛" | 3 | 10"x10" | $733.46 |
