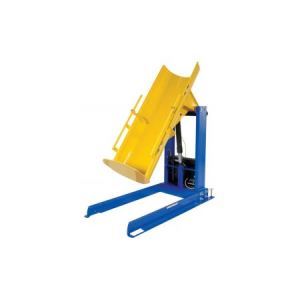

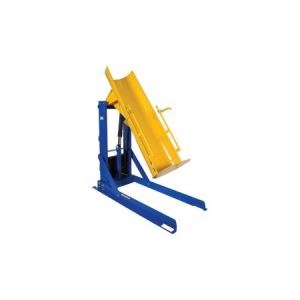

Barrel Dumper - Beacon® BHDD-S Series
Barrel Dumper - Hydraulic Drum Tipper is ideal for the dispensing of drum contents at various standard heights. This hydraulic equipment is controlled by the push of a button. Models dump various steel, plastic, and fiber drum sizes.
Product Details - Construction: Features steel construction and stainless steel finish.
- Dump Heights: Units dump at various heights from 36" to 72".
- Power: 1-1/2 Hp motor, single phase. (Three phase also available).
- Installation: The unit is standard with a blue enamel chute and frame. Three options are available all with a 304 stainless steel chute; (1) blue enamel frame, (2) white powder coat frame FDA approved incidental contact (3) Steel-It Frame FDA incidental contact.
- Weight: The Barrel Dumper weighs from 735 to 1,186 lbs.
- Capacities: Models feature capacities of 750, 1,000 or 1,500 lbs.
- Standard: Upper travel limit switch, emergency brass safety velocity fuse in cylinder and vertical adjustment drum restraints are standard.
- Options: 30-gallon drum adaptor. Stainless steel chutes. 12 V DC. Adjustable height clamps, coated in Steel-It coating, must be ordered as option with the hydraulic Barrel Dumper.
- Limited Warranty: Contact Beacon regarding additional hold-down bar heights
- Note: All standard and special drum dumper chutes are stitch welded. Special continuous welds for liquid tight available at additional charge.
