Beacon Industries, Inc. -Aluminum A Frame Hoist with Leveling Legs - Bear Claw® BAHA-ALO Series

DOWNLOADS

Aluminum A Frame Hoist with Leveling Legs consists of a stationary crane design with the ability to adjust for off-set surfaces with stable positioning.


Category: cranes | hoists | manufacturing cranes...

MasterFormat: Piece Material Handling Equipment | Cranes and Hoists | Cranes


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

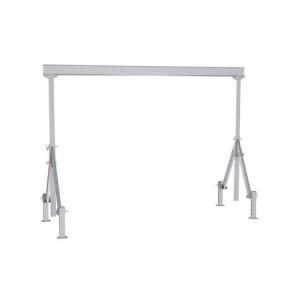

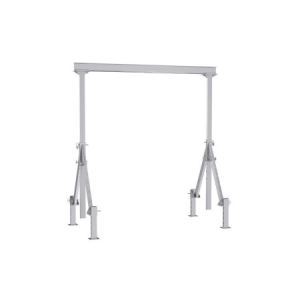

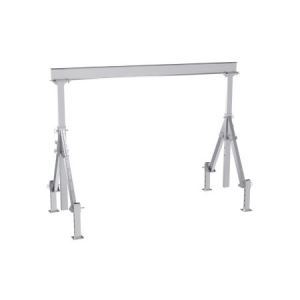

Aluminum A Frame Hoist with Leveling Legs - Bear Claw® BAHA-ALO Series

Aluminum A Frame Hoist with Leveling Legs consists of a stationary crane design with the ability to adjust for off-set surfaces with stable positioning.

Product Details
  • Construction: Aluminum Construction for indoor and outdoor application use.
  • Overall Length: Aluminum A Frame Hoist with Leveling Legs top beam lengths are available in 8', 10', 12', and 15'. Select the beam length that offers ample space for lifting and lowering.
  • Lift Heights: The height and leveling adjustments can be with the support from a fork truck or other overhead lifting devices for assistance.
  • Installation: Flat footed design provides stability.
  • Operation: Each of the 4 legs have a pin style adjustment design with pre drilled alteration holes, allowing the adjustable legs to be raised or lowered in increments.
  • Options: Hoist and Trolly sold separately.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.


See More


Specifications

Aluminum A Frame Hoist with Leveling Legs - BAHA-ALO Series
Model No.Capacity (LBS)Beam LengthBeam HeightUnder I-Beam RangeBase WidthFlange WidthNotePrice
1) BAHA-2-8-8-ALO2,00096"3.31"106"64"3.31"A$4,490.01
2) BAHA-2-8-10-ALO2,00096"3.31"130"64"3.31"A$4,780.60
3) BAHA-2-8-12-ALO2,00096"3.31"152"64"3.31"A$4,969.77
4) BAHA-2-10-8-ALO2,000120"4.18"106"64"4.18"A$4,903.79
5) BAHA-2-10-10-ALO2,000120"4.18"130"64"4.18"A$5,037.39
6) BAHA-2-10-12-ALO2,000120"4.18"152"64"4.18"A$5,295.56
7) BAHA-2-12-8-ALO2,000144"4.18"107"64"4.18"A$5,454.06
8) BAHA-2-12-10-ALO2,000144"4.18"130"64"4.18"A$5,624.29
9) BAHA-2-12-12-ALO2,000144"4.18"152"64"4.18"A$5,856.02
10) BAHA-2-15-8-ALO2,000180"4.18"106"64"4.18"A$6,611.74
11) BAHA-2-15-10-ALO2,000180"4.18"130"64"4.18"A$7,074.01
12) BAHA-2-15-12-ALO2,000180"4.18"152"64"4.18"A$7,351.40
13) BAHA-4-8-8-ALO4,00096"3.31"106.12"64.18"3.31"A$5,973.47
14) BAHA-4-8-10-ALO4,00096"3.31"130.12"64.18"3.31"A$6,218.47
15) BAHA-4-8-12-ALO4,00096"3.31"152.12"64.18"3.31"A$6,522.24
16) BAHA-4-10-8-ALO4,000120"4.18"106.12"64.18"4.18"A$6,894.98
17) BAHA-4-10-10-ALO4,000120"4.18"130.12"64.18"4.18"A$7,103.26
18) BAHA-4-10-12-ALO4,000120"4.18"152.12"64.18"4.18"A$7,621.40
19) BAHA-4-12-8-ALO4,000144"4.18"106.12"64.18"4.18"A$7,092.99
20) BAHA-4-12-10-ALO4,000144"4.18"130.12"64.18"4.18"A$7,476.14
21) BAHA-4-12-12-ALO4,000144"4.18"152.12"64.18"4.18"A$8,007.25
Notes:
A: * Deduct 12" for distance between upright; (4) 8" 4-position Swivel Lock Phenolic Casters Standard; Adjustable in 6" Increments. * Hoist & Trolley sold separately*. *Assembly by others*.
