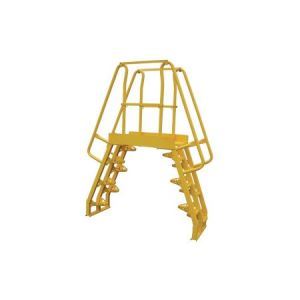

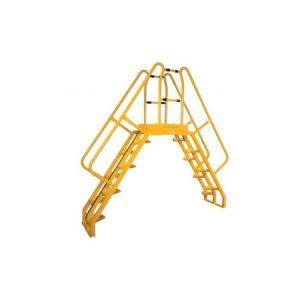

Alternating Cross Over Ladder - Beacon® BCOLA Series
The Alternating Cross Over Ladder - Ladder with Platform allows permanent cross-over points where you need them. The alternating tread allows for a shorter overall span than other cross-over units such as pipes or heavily trafficked areas. Upper platform has a removable two-sided 42" handrail with 21" mid rail. Platform also features fixed 4" toe boards to eliminate the possibility of objects rolling off. Lag down points are included to secure unit to the floor. All units feature a serrated tread. Units with 4 to 12 steps are available.
Product Details - Construction: Units feature heavy-duty steel construction.
- Size: Models range in overall span from 62-7/8" to 164-3/8", in clear span from 19-15/16" to 52-1/8", in clear height from 26-13/16" to 81-5/16", and in height from 72-1/4" to 126-11/16". Usable width is 19-3/4" between rails. All units are 24" wide.
- Service Range: Step angle ranges from 56 to 68 degrees.
- Color: Models are powder coated Beacon yellow.
- Weight: 296 to 532 lbs.
- Capacity: 350 lbs. per unit.
- Standard: Alternating Cross Over Ladder units meet OSHA standards.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
