Beacon Industries, Inc. -A Frame Hoist - Bear Claw® BAHS Series

DOWNLOADS

The A Frame Hoist - Steel Gantry Crane is perfect for transporting and positioning large, bulky materials along the beam length. Four 8" swivel casters enable swift portability within a facility and V-groove casters with track are also available.


Category: cranes | hoists | manufacturing cranes...

MasterFormat: Piece Material Handling Equipment | Cranes and Hoists | Cranes


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

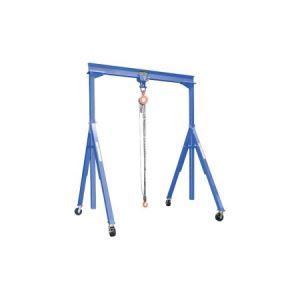

A Frame Hoist - Bear Claw® BAHS Series

The A Frame Hoist - Steel Gantry Crane is perfect for transporting and positioning large, bulky materials along the beam length. Four 8" swivel casters enable swift portability within a facility and V-groove casters with track are also available. This unit has an adjustable height in 6" increments.

Product Details
  • Construction: Models are constructed of heavy-duty steel.
  • Size: Adjustable Height. Span beam width: 10', 15' and 20'. There is a 5' minimum height to 16'-1" maximum height under I-beam to ground.

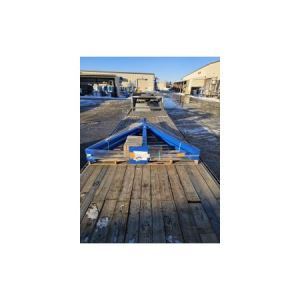

  • Installation: All cranes are shipped disassembled. Inspect frequently to ensure safe operation. Final testing and inspecting is left to the end user after final assembly has been completed. For further details see ASME B30.17.
  • Color: All models feature a blue powder coat finish.
  • Weight: Adjustable height A Frame Hoist models range from 808 lbs. to 1,699 lbs.
  • Operation: This gantry crane is not to be moved while loaded. This series positions into place manually.
  • Capacities: This series has capacities ranging from 2,000 to 10,000 lbs.
  • Options: Lever ratchet for user friendly one person height adjustment, total locking casters, V-groove casters, V-groove track, and power traction drive with 3-button hand controls are all available as A Frame Hoist options.
  • Limited Warranty: One year structural.
  • Note: Hoist and trolley sold separately. All lead times are approximate and are only estimates with no guarantee to a ship date.


See More


Specifications

Bear Claw® A Frame Hoist - BAHS Series
Model No.Capacity (LBS)Beam LengthBeam HeightUnder I-Beam RangeBase WidthFlange WidthNotePrice
1) BAHS-2-10-122,00010'6"7'-6" to 12'77"4"A$3,683.04
2) BAHS-2-10-142,00010'6"8'-6" to 14'89"4"A$4,065.87
3) BAHS-2-10-162,00010'6"10'-6" to 16'89"4"A$4,903.75
4) BAHS-2-15-72,00015'6"5' to 7'47"4"A$3,279.36
5) BAHS-2-15-92,00015'6"6' to 9'59"4"A$3,402.75
6) BAHS-2-15-102,00015'6"6'-6" to 10'65"4"A$3,522.99
7) BAHS-2-15-122,00015'6"7'-6" to 12'77"4"A$4,051.17
8) BAHS-2-15-142,00015'6"8'-6" to 14'89"4"A$4,331.53
9) BAHS-2-15-162,00015'6"10'-6" to 16'89"4"A$5,166.54
10) BAHS-2-20-122,00020'8"7'-6" to 12'77"4"A$4,291.93
11) BAHS-2-20-142,00020'8"8'-6" to 14'89"4"A$4,677.76
12) BAHS-2-20-162,00020'8"10'-6" to 16'89"4"A$5,514.30
13) BAHS-4-10-124,00010'8"7'-6" to 12'77"4"A$3,945.59
14) BAHS-4-10-144,00010'8"8'-6" to 14'89"4"A$4,274.35
15) BAHS-4-10-164,00010'8"10'-6" to 16'89"4"A$5,112.25
16) BAHS-4-15-74,00015'8"5' to 7'47"4"A$3,537.71
17) BAHS-4-15-94,00015'8"6' to 9'59"4"A$3,675.66
18) BAHS-4-15-104,00015'8"6'-6" to 10'65"4"A$3,798.81
19) BAHS-4-15-124,00015'8"7'-6" to 12'77"4"A$4,324.17
20) BAHS-4-15-144,00015'8"8'-6" to 14'89"4"A$5,049.14
21) BAHS-4-15-164,00015'8"10'-6" to 16'89"4"A$5,882.48
22) BAHS-4-20-124,00020'10"7'-6" to 12'77"4"A$5,341.04
23) BAHS-4-20-144,00020'10"8'-6" to 14'90"4"A$5,694.63
24) BAHS-4-20-164,00020'10"10'-6" to 16'89"4"A$6,531.16
25) BAHS-6-10-126,00010'8"7'-7" to 12'-1"78"4"A$4,375.46
26) BAHS-6-10-146,00010'8"8'-6" to 14'90"4"A$4,726.29
27) BAHS-6-10-166,00010'10"10' to 16'90"4"A$5,785.60
28) BAHS-6-15-76,00015'10"5'-1" to 7'-1"48½"4"A$4,252.34
29) BAHS-6-15-96,00015'10"6'-1" to 9'-1"60½"4"A$4,366.68
30) BAHS-6-15-106,00015'10"6'-7" to 10-'1"66½"4"A$4,519.44
31) BAHS-6-15-126,00015'10"7'-7" to 12'-1"78"4"A$5,126.81
32) BAHS-6-15-146,00015'10"8'-6" to 14'90"4"A$5,572.96
33) BAHS-6-15-166,00015'10"10'-7" to 16'-1"90"4"A$6,629.35
34) BAHS-6-20-126,00020'10"7'-7" to 12'-1"78"6½"A$5,682.89
35) BAHS-6-20-146,00020'10"8'-6" to 14'90"6½"A$6,133.45
36) BAHS-6-20-166,00020'10"10'-7" to 16'-1"90"6½"A$7,198.74
Bear Claw® A Frame Hoist - BAHS Series (continued)
Model No.Capacity (LBS)Beam LengthBeam HeightUnder I-Beam RangeBase WidthFlange WidthNotePrice
37) BAHS-8-10-128,00010'10"7'-7" to 12'-1"78"4"A$4,633.77
38) BAHS-8-10-148,00010'10"8'-6" to 14'90"4"A$4,949.21
39) BAHS-8-10-168,00010'10"10'-7" to 16'-1"90"4"A$6,079.13
40) BAHS-8-15-78,00015'10"5' to 7'46"4"A$4,508.98
41) BAHS-8-15-98,00015'10"6' to 9'58"4"A$4,633.81
42) BAHS-8-15-108,00015'10"6'-6" to 10'64"4"A$4,784.84
43) BAHS-8-15-128,00015'10"7'-7" to 12'-1"77"4"A$5,091.66
44) BAHS-8-15-148,00015'10"8'-6" to 14'90"4"A$5,517.24
45) BAHS-8-15-168,00015'10"10'-7" to 16'-1"90"4"A$6,648.55
46) BAHS-8-20-128,00020'12"7'-7" to 12'-1"78"6½"A$6,327.15
47) BAHS-8-20-148,00020'12"8'-6" to 14'90"6½"A$6,718.84
48) BAHS-8-20-168,00020'12"10'-7" to 16'-1"90"6½"A$7,848.86
49) BAHS-10-15-1010,00015'12"6'-6" to 10'64½"4"A$7,988.12
Model No.OptionNotePrice
50) BAHS-CrateWood Shipping CrateCall for Quote
Notes:

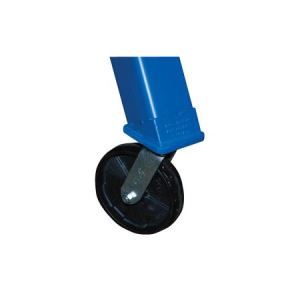

A: * Deduct 12" for distance between upright; (4) 8" 4-position Swivel Lock Phenolic Casters Standard; Adjustable in 6" Increments. * Hoist & Trolley sold separately*. *Assembly by others*.
