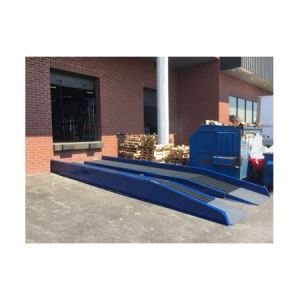

Truck Wheel Riser Ramps - Beacon® BTR Series
Truck Wheel Riser Ramps are designed to raise and keep trucks level while positioned at the loading dock for your specific truck and van width requirements. The BTR series simply allows the driver to back the truck up on the ramp to raise the truck bed height to the loading dock requirements. Features a long level platform, raising tractor trailers, box trucks and vans to a level surface meeting the loading dock height, filling the height gap, creating a smoother transition.
Product Details - Construction: Truck Wheel Riser Ramps are manufactured of heavy duty steel grating with plate steel construction built for years of service.
- Service Range: The pair of ramps are available in different heights ranging from 6" to 24", meeting the requirements of different dock heights for different trucks and vans.
- Overall Width: Each unit has 42" overall width with a 36" usable width, allowing positioning for a variety of trucks and vans.
- Installation: Positioning of ramps are customers responsibility.
- Capacity: The set of Truck Wheel Riser Ramps maximum capacity is 40,000 lbs. per unit with 80,000 lbs. per pair.
- Standard: Designed with run off 8" fall protection safety curb on the out side edge of each ramp. Inside edge does not have safety curb and designed to be level.
- Usage: Sold and priced as pairs.
- Note: Special sizes available, call Beacon with your application for special quote.
