Interior Solutions - HP - I-TEC-STEP CAPACITY DEHUM - I30H - I60H
I30H - I60H

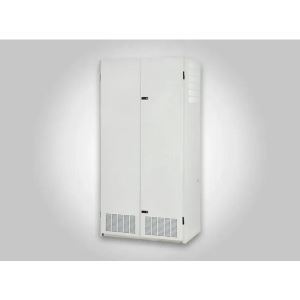

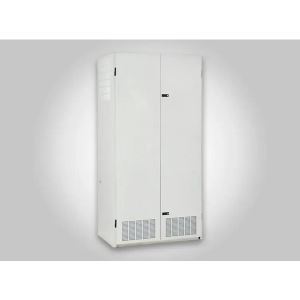

This unit is based on Bard’s I-TEC Step Capacity Heat Pump, but it provides a unique dehumidification circuit for periods of high indoor humidity conditions. An “energy recovery ventilator” option is available to provide for outside ventilation air requirements by eliminating excessive sensible and latent loads as a result of the increased ventilation requirement.
FEATURES & SPECIFICATIONS I30H - I60H
- Up to 16.5 IPLV cooling efficiency
- Up to 3.7 COP heating efficiency
- 2.5 to 5.0 ton cooling capacity
- 2-stage cooling / 3-stage heating
- Active hot-gas dehumidification circuit
- Single and three-phase power options
- R-410A green refrigerant
- Copeland scroll compressor
- Factory installed electric heat options
- Factory installed ventilation options\
- 2" MERV8 Air Filters
- ECM variable speed blower motor
- Eco-friendly insulation
- AHRI Certified
- ETL Listed (US and Canada)
* For full product specifications see Product Resources tab below.
RECOMMENDED OPTIONAL EQUIPMENT - Electric Heat Options
- 2" MERV11 or MERV13 Air Filters
- UV-C LED Light w/MEVR13 Air Filters
- Hot Water Coils
- Wall-Sleeve & Louvers
- Duct Free Plenum Options
- Ducted & Non-Ducted Accessories
- Optional student anti-huffing lock

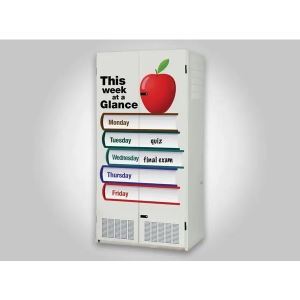

- Optional door vinyl graphics
- Thermostats
- Humidistats
- CompleteStat
- BrightStat
VENTILATION OPTIONS - Ventilation Options for Model Group(s)- I30H, I36H, I42H, I48H, I60H :
- Blank Off Plate (No Ventilations)
- Commercial Room Ventilator
- Energy Recovery Ventilator
