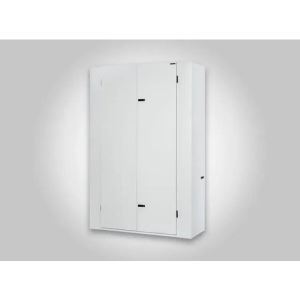

Interior Solutions - HP - I-TEC-STEP CAPACITY - I36Z - I60Z

I36Z - I60Z

The Bard I-TEC series provides superior indoor air quality and the ultimate in quiet operation. Vented above the sill at window level, the unit is designed to be aesthetically pleasing indoors and out. Ideal comfort. Intelligent technology.

FEATURES & SPECIFICATIONS

I36Z - I60Z

Up to 16.5 IPLV cooling efficiency
3.0 and 5.0 ton cooling capacity
Single and three-phase power options
R-410A green refrigerant
2-stage Copeland scroll compressor
2-stage cooling / 3-stage heating
Optional electric heat kits
2" MERV8 Air Filters
ECM variable speed blower motor
Eco-friendly insulation
AHRI Certified
ETL Listed (US and Canada)
Designed for ultra quiet application needs

* For full product specifications see Product Resources tab below.

RECOMMENDED OPTIONAL EQUIPMENT
  • 2" MERV11 or MERV13 Air Filters
  • UV-C LED Light w/MERV13 Air Filters
  • Ventilation Options
  • Electric Heat Options
  • Hot Water Coils
  • Wall-Sleeve & Louvers
  • Duct Free Plenum Options
  • Ducted & Non-Ducted Accessories
  • Optional student anti-huffing lock

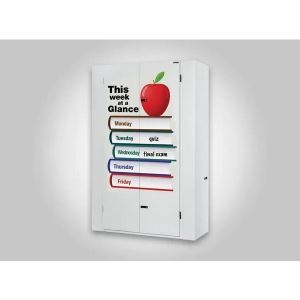

  • Optional door vinyl graphics
  • Thermostats
  • CompleteStat
  • BrightStat
VENTILATION OPTIONS
  • Ventilation Options for Model Group(s)- I36Z, I48Z, I60Z :
    • Blank Off Plate (No Ventilations)
    • Commercial Room Ventilator
    • Economizer


See More


Specifications

Model GroupTon CapacityElectricalSupply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
I36Z3

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

61.6x31.5x94.5
I48Z4

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

61.6x31.5x94.5
I60Z5

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

61.6x31.5x94.5
Cabinet Colors
X = Beige4 = Buckeye Gray5 = Desert Brown
Standard Louver Colors
Clear AluminumDark BronzeMedium Brown
Optional Louver Colors
Arctic WhiteStorm WhiteGraphite Grey
Milano BeigeDark BronzeSchoolbus Yellow
Florida OrangeSchoolhouse RedChili Red
Bahama BlueDeep Sea BlueSage Green
Ivy Green
