Interior Solutions - Chilled Water - Q-TEC-STANDARD - QC501

QC501

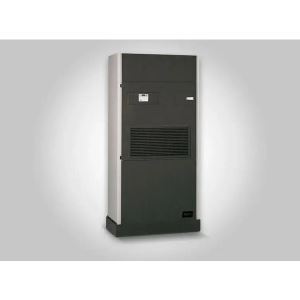

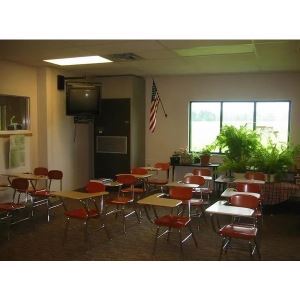

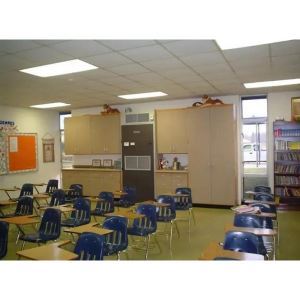

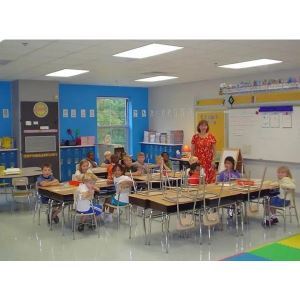

The Q-Tec self-contained packaged chilled water air conditioner is designed to be installed inside a building structure against an exterior exposed wall when ventilation option is selected. When no ventilation option is used, the QC-Series units can be installed in any interior space accessible to water supply system and condensate drain.

FEATURES & SPECIFICATIONS

QC501

  • 13,300 - 49,300 cooling capacity range
  • 2 or 3-way water valve
  • 115-1-60 and 230/208-1-60 power options
  • ECM variable speed blower
  • Stainless steel drain pan
  • Optional factory installed electric heat
  • Optional hot water coils
  • Optional ventilation alternatives
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

RECOMMENDED OPTIONAL EQUIPMENT
  • 2" MERV13 Air Filters
  • Factory Installed Ventilation Options
  • Hot Water Coils
  • Wall-Sleeve & Louvers
  • Duct Free Plenum Options
  • Ducted & Non-Ducted Accessories
  • Thermostats
  • Humidistats
  • CompleteStat
  • BrightStat
VENTILATION OPTIONS
  • Ventilation Options for Model Group(s)- QC50 :
    • Blank Off Plate (No Ventilations)
    • Barometric Fresh Air Damper
    • Commercial Room Ventilator
    • Energy Recovery Ventilator


See More


Specifications

Model GroupTon CapacityElectricalSupply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
QC503.5

230/208-60-1

115-60-1

277-60-1

N/A

N/A

N/A

42x20.1x86.9
Cabinet Colors
X = Beige4 = Buckeye Gray
Standard Louver Colors
Clear AlumniumDark BronzeMedium Bronze
Optional Louver Colors
Arctic WhiteStorm WhiteGraphite Grey
Milano BeigeDark BronzeSchoolbus Yellow
Florida OrangeSchoolhouse RedChili Red
Bahama BlueDeep Sea BlueSage Green
Ivy Green
