Overview

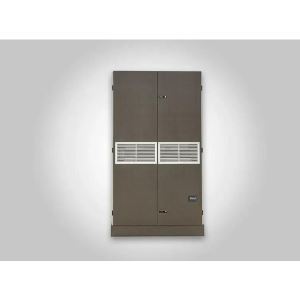

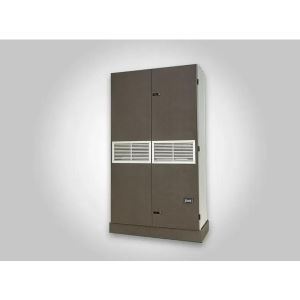

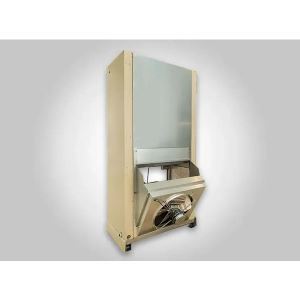

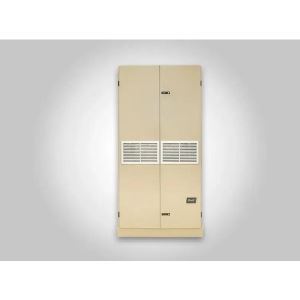

Interior Solutions - AC - Q-TEC-STANDARD DEHUM - Q36A - Q48A

Q36A - Q48A

Based on Bard’s popular Q-TEC series, this model provides a unique dehumidification circuit for periods of high indoor humidity conditions. Additionally, an “energy recovery ventilator” may be provided to allow for outside ventilation air requirements by eliminating excessive sensible and latent loads as a result of the increased ventilation requirement.

FEATURES & SPECIFICATIONS

Q36A - Q48A

  • 11.0 EER cooling efficiency
  • 3.0, 3.5, and 4.0 ton cooling capacity
  • Single and three-phase power options
  • Dehumidification circuit
  • R-410A green refrigerant
  • Copeland scroll compressor
  • ECM variable speed blower motor
  • Factory installed electric heat
  • Factory installed ventilation options
  • Factory installed climate control options
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

RECOMMENDED OPTIONAL EQUIPMENT
  • 2" MERV8 or MERV13 Air Filters
  • UV-C LED Light w/ MERV13 Air Filters
  • Hot Water Coils
  • Wall-Sleeve & Louvers
  • Duct Free Plenum Options
  • Ducted & Non-Ducted Accessories
  • Thermostats
  • CompleteStat
  • BrightStat
VENTILATION OPTIONS
  • Ventilation Options for Model Group(s)- Q36A, Q42A, Q48A :
    • Blank Off Plate (No Ventilations)
    • Barometric Fresh Air Damper
    • Commercial Room Ventilator

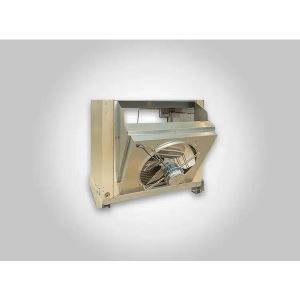

    • Economizer
    • Energy Recovery Ventilator


See More


Specifications

Model GroupTon CapacityElectricalSupply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
Q36A3

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

42x24.1x86.9
Q42A3.5

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

42x24.1x86.9
Q48A4

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

48x24.1x86.9

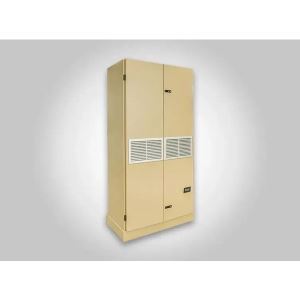

Cabinet Colors
X = Beige4 = Buckeye Gray
Standard Louver Colors
Clear AluminumDark BronzeMedium Bronze
Optional Louver Colors
Arctic WhiteStorm WhiteGraphite Grey
Milano BeigeDark BronzeSchoolbus Yellow
Florida OrangeSchoolhouse RedChili Red
Bahama BlueDeep SeablueSage Green
Ivy Green
