Interior Solutions - AC - I-TEC-STEP CAPACITY DEHUM - I30A - I60A

I30A - I60A

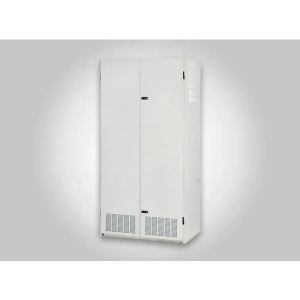

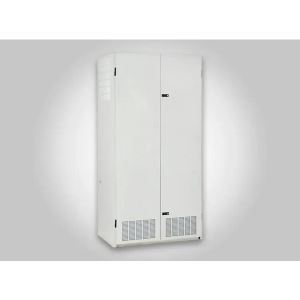

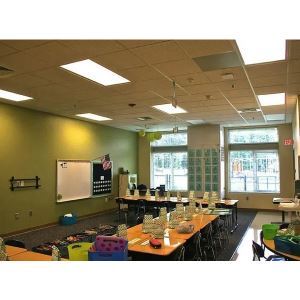

The Bard I-TEC classroom climate system provides superior indoor air quality and the ultimate in quiet operation. Vented above the sill at window level, the unit is designed to be aesthetically pleasing indoors and out. Unparalleled Bard quality. Innovative technology. Excellent value.

FEATURES & SPECIFICATIONS

I30A - I60A

  • Up to 16.5 IPLV cooling efficiency
  • 2.5 to 5 ton cooling capacity
  • Single and three-phase power options
  • R-410A green refrigerant
  • Copeland scroll compressor
  • 2 stage cooling / 2 stage heating
  • 2" MERV 8 Air Filters
  • Factory installed ventilation options
  • ECM variable speed blower motor
  • Eco-friendly insulation
  • Factory installed electric heat
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

RECOMMENDED OPTIONAL EQUIPMENT
  • 2" MERV11 or MERV13 Air Filters
  • UV-C LED Light w/MERV13 Air Filters
  • Optional student anti-huffing lock

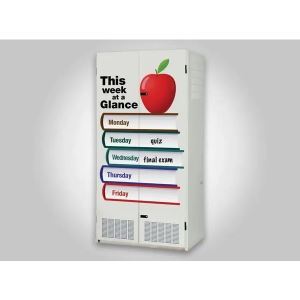

  • Optional door vinyl graphics
  • Hot Water Coils
  • Climate Control Options
  • Wall-Sleeve & Louvers
  • Duct Free Plenum Options
  • Ducted & Non-Ducted Accessories
  • Thermostats
  • CompleteStat
  • BrightStat
VENTILATION OPTIONS
  • Ventilation Options for Model Group(s)- I30A, I36A, I42A, I48A, I60A :
    • Blank Off Plate (No Ventilations)
    • Commercial Room Ventilator
    • Energy Recovery Ventilator


See More


Specifications

Model GroupTon CapacityElectricalSupply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
I30A2.5

230/208-60-3

460-60-3

N/A

N/A

N/A

47.6x31.4x94
I36A3

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

47.6x31.4x94
I42A3.5

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

47.6x31.4x94
I48A4

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

47.6x31.4x94
I60A5

230/208-60-1

230/208-60-3

460-60-3

N/A

N/A

N/A

47.6x31.4x94
Cabinet Colors
X = Beige 1 = White4 = Buckeye Gray
Standard Louver Colors
Clear AluminumDark BronzeMedium Bronze
Optional Louver Colors
Artic WhiteStorm WhiteGraphite Grey
Milano BeigeDark BronzeSchoolbus Yellow
Florida OrangeSchoolhouse RedChili Red
Bahama BlueDeep Sea BlueSage Green
Ivy Green
