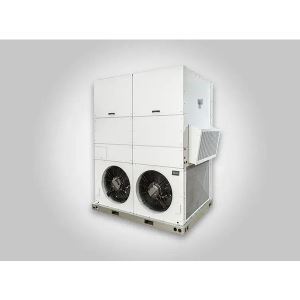

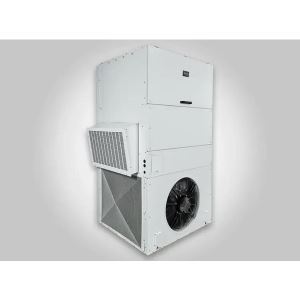

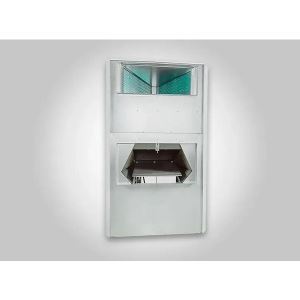

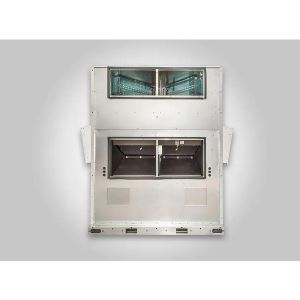

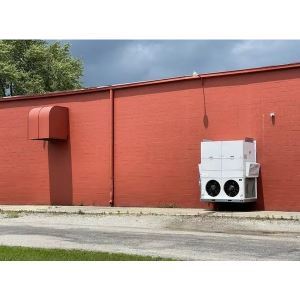

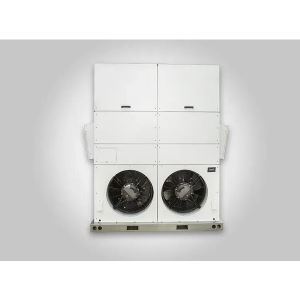

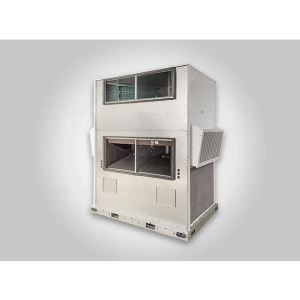

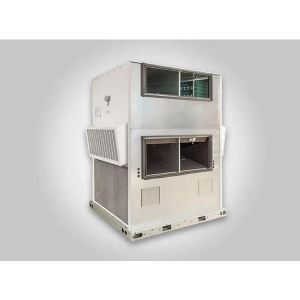

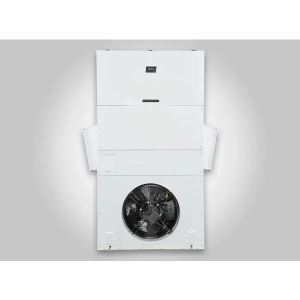

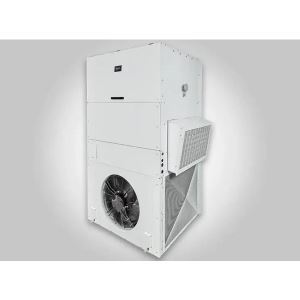

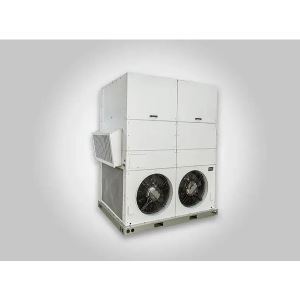

Exterior Wall-Mount AC - MEGA-TEC-PLC DEHUM - W090A - W180B
W090A - W180B
The MEGA-TEC is designed for applications requiring a large amount of sensible cooling capacity and limited wall space. Dual refrigeration circuits and a total of three stages with the lowest stage less than 35% of the total capacity provide cooling for an area with a varying heat load. MEGA-TEC provides an AHRI certified 10+ EER solution that meets D.O.E. requirements and the efficiency ratings of state and national codes. Industrial grade indoor and outdoor fans provide years of trouble-free service. An optional economizer provides full-flow outdoor air intake and room exhaust based on outside temperature or enthalpy.
FEATURES & SPECIFICATIONS W090A - W180B
- Large Cooling Capacity / High Sensible Capacity
- Copeland UltraTech Scroll Compressors
- Dual Refrigerant Circuits
- Optional Factory Economizer
- Optional Electric Reheat Dehumidification
- R-410A Refrigerant
- 230/208-3-60 & 460-3-60, 575-3-60
- 220/200-3-50, 415/380-3-50
- PLC Control Board Logic
- Industrial Indoor/Outdoor Motors
- 2" MERV8 Air Filter
- Airflow & Dirty Filter Switches
- High & Low Pressure Transducers
- Supply/Return Temperature Sensors
- Compressor Crank Case Heater
- Optional Technical Coil Protection
- AHRI Certified
- ETL Listed (US and Canada)
* For full product specifications see Product Resources tab below.
RECOMMENDED OPTIONAL EQUIPMENT - 2" MERV11 or MERV13 Air Filters
- Economizer Free Cooling Option
- Electric Heat Option
- Electric Reheat Dehumidification Option
- Supply & Return Grilles
- LC6000 Series PLC Controller
- Controls Up To 14 Units & Three Zones
- Single Unit Controller PGD or PGDx
VENTILATION OPTIONS - Ventilation Options for Model Group(s)- W090, W120, W150, W180 :
- Blank Off Plate (No Ventilations)
- Economizer
