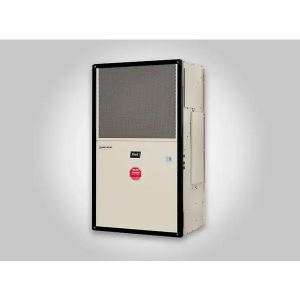

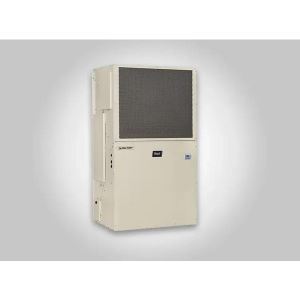

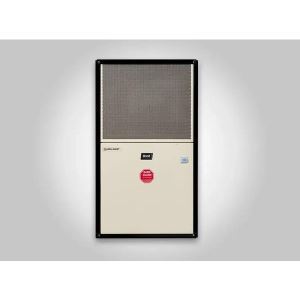

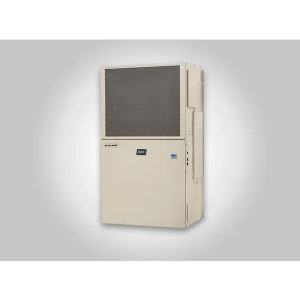

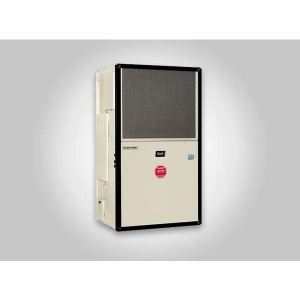

Exterior Wall-Mount AC - FUSION-TEC-PLC - WR35 - WR58

WR35 - WR58

The FUSION-TEC has been designed specifically to optimize Free Direct Ambient Cooling (DAC) opportunities. By implementing a reverse-airflow design, productive outdoor air for free cooling is brought into the system from the lower portion of the chassis. The heat in the shelter is exhausted out of the top of the chassis which completely eliminates any possibility of recirculating hot exhaust into the cool air entryway. When outdoor air is not productive for free cooling, the FUSION-TEC system has a fully flexible mechanical cooling operation that operates at an IPLV of up to 17.0, and also satisfies the D.O.E.'s 11.0 EER efficiency requirements.

WR35 - WR58

• Reverse Airflow
• Step Capacity Scroll Compressor
• Factory Installed DAC Free Cooling Unit
• R-410A Refrigerant
• 230/208-1-60 & 230/208-3-60
• Inverter Models Available
  • 48VDC or 24VDC Options

• PLC Control Board Logic
• DEC Star & HEB Design Blower Motor
• 2" MERV8 Air Filter
• Airflow & Dirty Filter Switches
• High & Low Pressure Transducers
• Optional Technical Coil Protection
• Optional Bard Guard Factory Installed Security
• AHRI Certified
• ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

• LC6000 Series PLC Controller
  • Controls Up To 14 Units & Three Zones
• Bard Guard Security Option
• BG1000 Bard Guard Control (1-4 Units)
• CMA-36 Bard Guard Power Supply (110V/120V)
• VIC1500 Series Inverters 48VDC or 24VDC
• Service Tools
• Supply & Return Grilles

• Ventilation Options for Model Group(s)- WR35, WR36, WR58 :
  • Economizer
