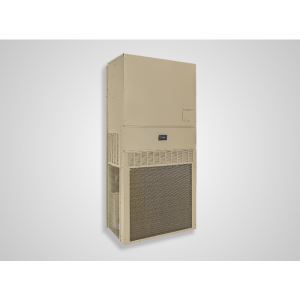

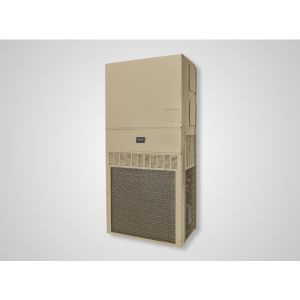

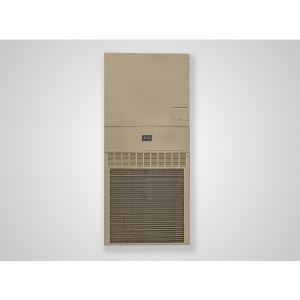

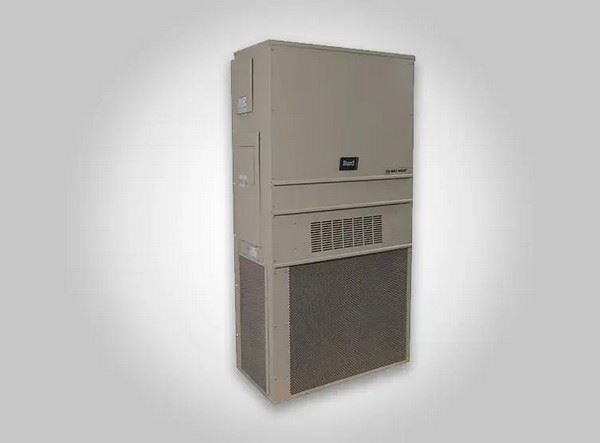

Exterior Wall-Mount - HP - WVH DEHUM - W3VH - W5VH

W3VH - W5VH

These units add dehumidification to the Bard Variable Speed Wall-Mount™ with Inverter Technology, an energy-efficient, self-contained system that offers maximum indoor comfort with consistent temperatures. True capacity control is based on cooling and heating demand providing occupants a comfortable, quiet, and energy-efficient indoor environment. Up to 17.5 IPLV. Available in three or five ton with various ventilation options to meet IAQ requirements.

FEATURES & SPECIFICATIONS

W3VH - W5VH

  • Up to 17.5 IPLV
  • Inverter technology
  • Variable speed fan & blower
  • Low temperature capabilities
  • High humidity applications: excellent sensible and latent removal performance
  • Our quietest unit yet
  • Quiet mode: optimal sound performance
  • Boost mode: can deliver over 35% more capacity than its rated output
  • Dual 60/50 Hz power capabilities
  • R-410A refrigerant
  • AHRI Certified

* For full product specifications see Product Resources tab below.

RECOMMENDED OPTIONAL EQUIPMENT
  • Up to a MERV13 Air Filter
  • Field Installed Electric Heat Kits
  • Field Installed Ventilation Options
  • Optional Dehumidification
  • Isolation/Sound Curbs
  • BrightStat
VENTILATION OPTIONS
  • Ventilation Options for Model Group(s)- W3VH, W5VH :
    • Blank Off Plate (No Ventilations)
    • Economizer
    • Energy Recovery Ventilator
    • Barometric Fresh Air Damper


See More


Specifications

Model GroupTon CapacityElectricalSupply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
W3VH3

230/208-60-1, 220/200-50-1

230/208-60-3, 220/200-50-3

460-60-3, 415-50-3

10 x 30

16 x 30

30

42x25.5x84.9
W5VH5

230/208-60-1, 220/200-50-1

230/208-60-3, 220/200-50-3

460-60-3, 415-50-3

10 x 30

16 x 30

30

42x25.5x93
Cabinet Colors
A = Aluminum1 = White4 = Buckeye Gray
5 = Desert BrownX = Beige8 = Dark Bronze
S = Stainless Steel
