Exterior Wall-Mount - HP - WM-STANDARD - W18H - W60H

W18H - W60H

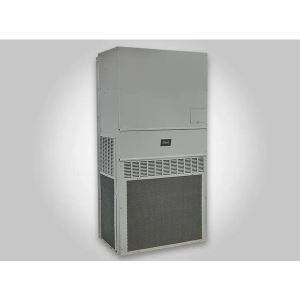

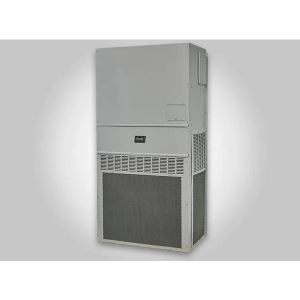

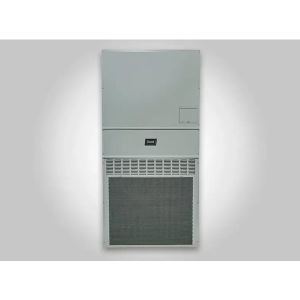

The Bard Wall-Mount Heat Pump is a self-contained energy efficient heating and cooling system, which is designed to offer maximum indoor comfort at a minimal cost without using valuable indoor floor space or outside ground space.

FEATURES & SPECIFICATIONS

W18H - W60H

  • 11.00 EER cooling efficiency
  • 3.3 COP heating efficiency
  • 1.5 - 5.0 ton capacity
  • Single and three-phase power options
  • Copeland scroll compressor
  • R-410A green refrigerant
  • Balanced Climate feature
  • Natural Fiber Insulation
  • Hydrophilic Evaporator Coils
  • Factory installed electric options
  • Factory installed ventilation options
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

RECOMMENDED OPTIONAL EQUIPMENT
  • 2" MERV8, MERV11 or MERV13 Air Filters
  • UV-C LED Light w/MERV13 Air Filters
  • Field Installed Electric Heat Kits
  • Field Installed Ventilation Options
  • Supply/Return Grilles
  • Isolation/Sound Curbs
  • Thermostats
  • CompleteStat
  • BrightStat
VENTILATION OPTIONS
  • Ventilation Options for Model Group(s)- W18H, W24H, W30H, W36H, W42H, W48H, W60H :
    • Blank Off Plate (No Ventilations)
    • Barometric Fresh Air Damper
    • Commercial Room Ventilator
    • Economizer


See More


Specifications

Model GroupTon CapacityElectricalSupply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
W18H1.5

230/208-60-1

8x20

12x20

20.6

33.3x17.1x74.6
W24H2

230/208-60-1

230/208-60-3

460-60-3

8x20

12x20

20.6

33.3x17.1x74.6
W30H2.5

230/208-60-1

230/208-60-3

460-60-3

8x28

14x28

18

38.2x17.1x74.6
W36H3

230/208-60-1

230/208-60-3

460-60-3

8x28

14x28

18

38.2x17.1x74.6
W42H3.5

230/208-60-1

230/208-60-3

460-60-3

10x30

16x30

30

42x25.5x84.8
W48H4

230/208-60-1

230/208-60-3

460-60-3

10x30

16x30

30

42x25.5x84.8
W60H5

230/208-60-1

230/208-60-3

460-60-3

10x30

16x30

30

42x25.5x93
Cabinet Colors
X = Beige1 = White4 = Buckeye Gray
5 = Desert Brown8 = Dark BronzeS = Stainless Steel
A = Aluminum
