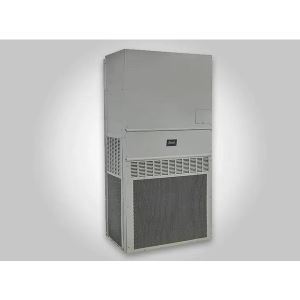

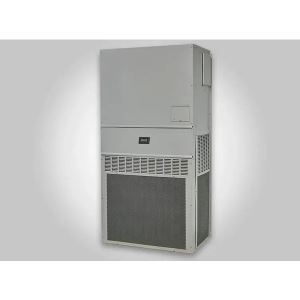

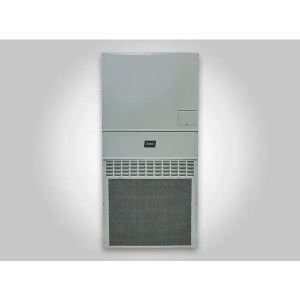

Exterior Wall-Mount - AC - MULTI-TEC-PLC-DEHUM - W42A*M - W72A*M

W42A*M - W72A*M

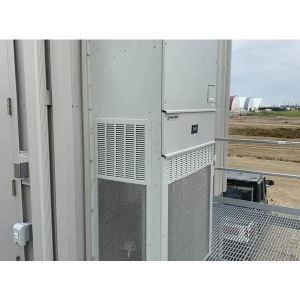

The MULTI-TEC Wall-Mount Air Conditioner utilize PLC technology to allow multiple units to operate connected to a single LC6000 controller. When installed with an optional 100% free cooling economizer, the unit will supply full-rated airflow in free cooling mode with the ability to exhaust unconditioned indoor air without the need for additional relief openings in the structure.

FEATURES & SPECIFICATIONS

W42A*M - W72A*M

  • Up to 11.3 EER
  • PLC Control Module
  • Copeland scroll compressors
  • R-410A green refrigerant
  • Copper tube / aluminum fin coils
  • Optional Free Cooling Economizer
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

RECOMMENDED OPTIONAL EQUIPMENT
  • Electric Reheat Dehum Option
  • Hot Gas Reheat Dehum Option
  • 2" MERV11 or MERV13 Air Filters
  • LC6000 PLC Controller
  • Supply/Return Grille
VENTILATION OPTIONS
  • Ventilation Options for Model Group(s)- W42A, W48A, W60A, W72A :
    • Blank Off Plate (No Ventilations)
    • Economizer


See More


Specifications

Model GroupTon CapacityElectricalSupply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
W42A3.5

230/208-60-1

230/208-60-3

460-60-3

10x30

16x30

30

42x25.5x84.8
W48A4

230/208-60-1

230/208-60-3

460-60-3

10x30

16x30

30

42x25.5x84.8
W60A5

230/208-60-1

230/208-60-3

460-60-3

10x30

16x30

30

42x25.5x93
W72A6

230/208-60-1

230/208-60-3

460-60-3

10x30

16x30

30

42x25.5x93
Cabinet Colors
X = Beige1 = White4 = Buckeye Gray
5 = Desert Brown8 = Dark BronzeS = Stainless Steel
A = Aluminum
