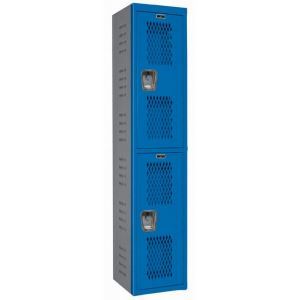

Heavy-Duty Ventilated Knock Down Lockers

When budget limitations do not allow for all-welded athletic lockers, HDV lockers are the perfect alternative.

Heavy-Duty Ventilated KD lockers, commonly known as HDV lockers, are the perfect solution when budget restrictions prevent the use of fully-framed all-welded lockers.

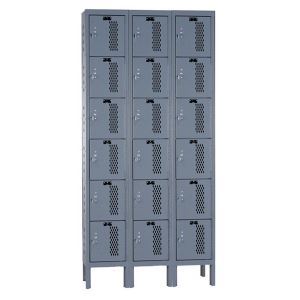

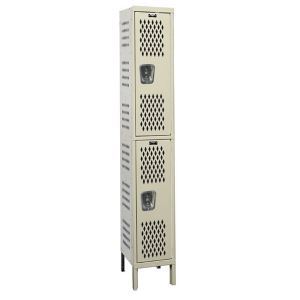

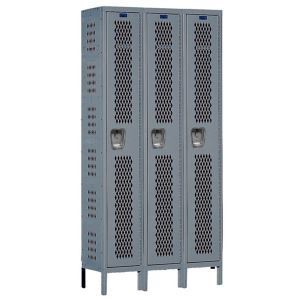

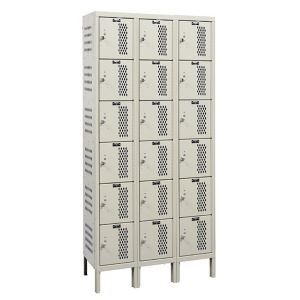

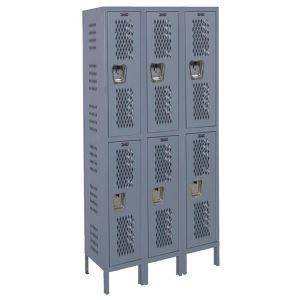

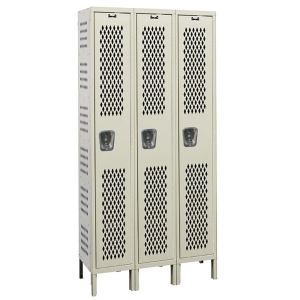

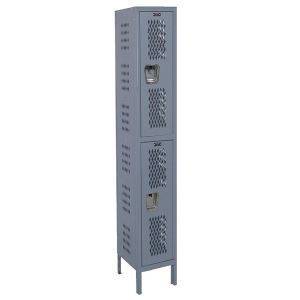

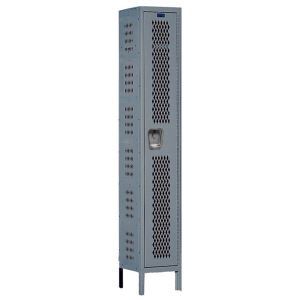

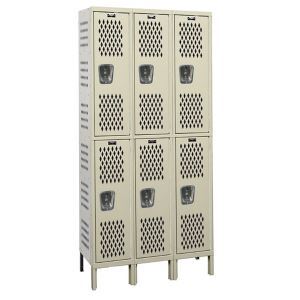

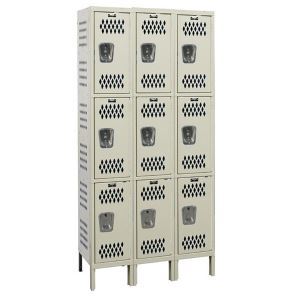

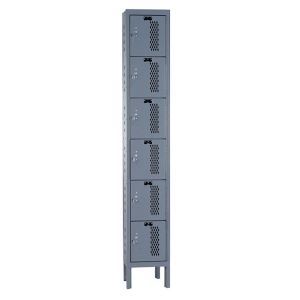

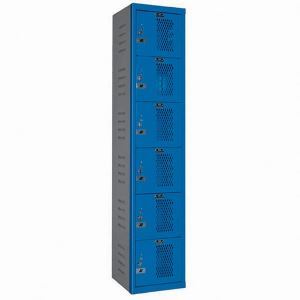

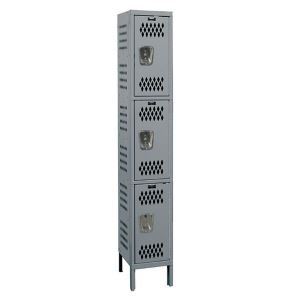

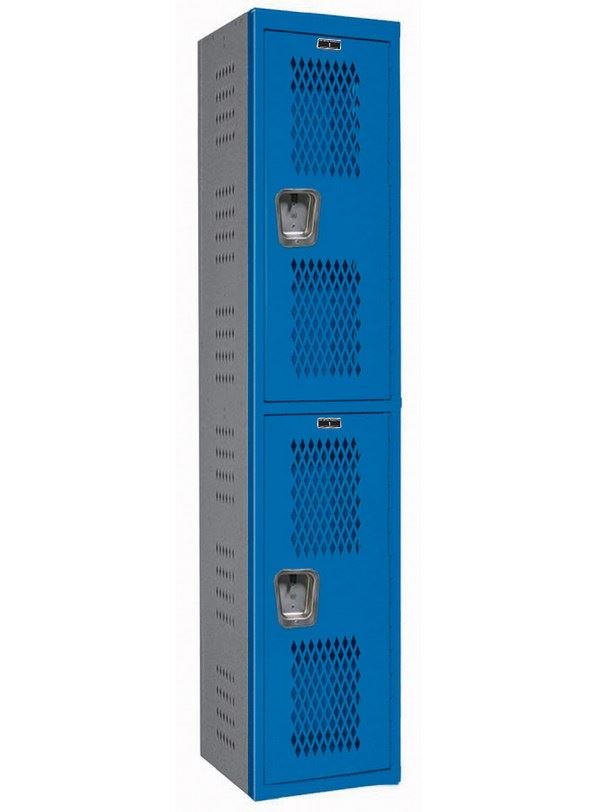

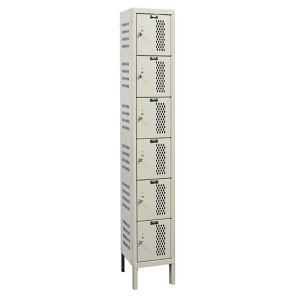

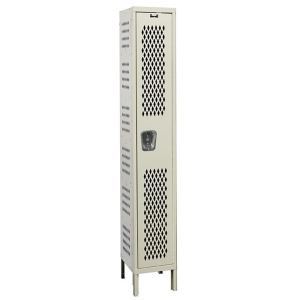

HDV lockers are sold in various colors and multiple tier wardrobe & box options.

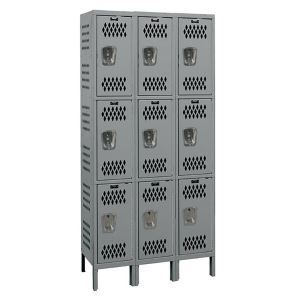

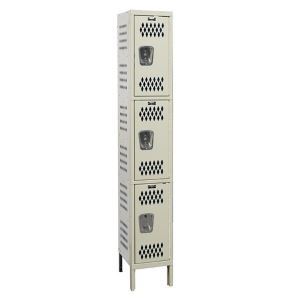

Body/Frame: Knock down (KD) with 16 gauge solid top, bottom and intermediate shelves, 16 gauge diamond perforated sides, 18 gauge solid back. 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers

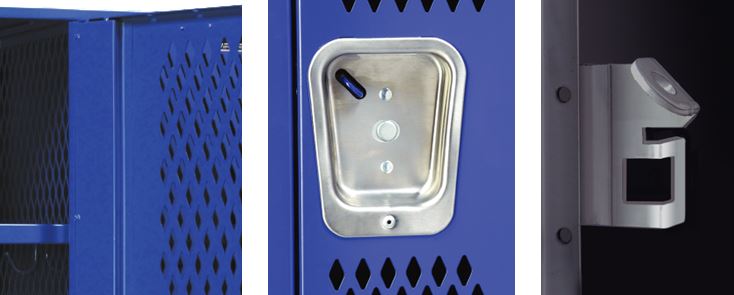

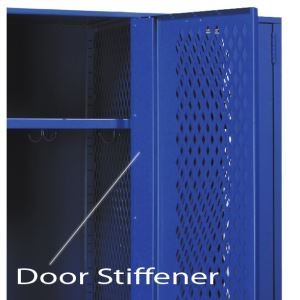

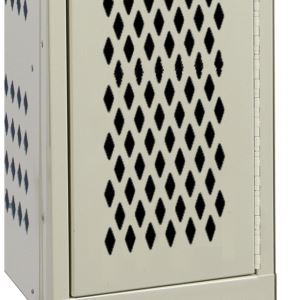

Doors: 14 gauge diamond perforated doors are standard. Louvered, Secure Air-Flow and Safety-View door styles are available. Continuous vertical door strike at both hinge and latch side

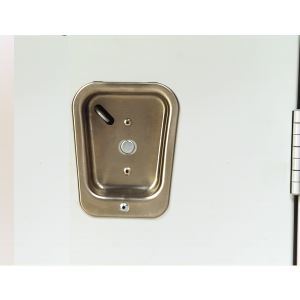

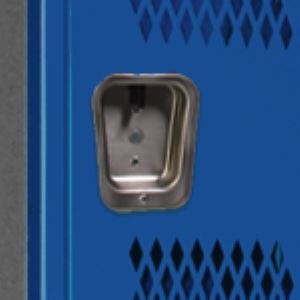

Handle: (Wardrobe) Deep-drawn seamless stainless steel recessed handle, (Box) Single-point thru-the-door finger pull padlock hasp

Latching: Gravity lift-type multi-point spring loaded latching: 3-point latching for openings 48" high and higher 2 point latching for openings 20" high thru 36" high

Hinges: 16 gauge continuous piano type

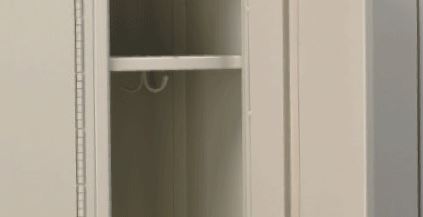

Hooks: 2-single hooks and 1-double hook is standard. 1- double hook only for triple tier 1 - single hook for 9" wide openings 30" and higher (None for Box Lockers)

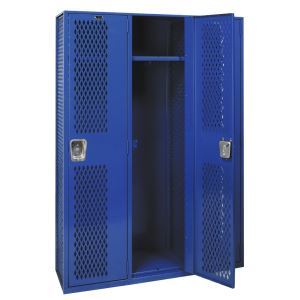

Shelves: 16 gauge hat shelf for single tier openings 60" and 72" high

Legs: All production KD lockers are supplied without legs unless otherwise specified

Warranty: 2 Year

Handle: Deep-drawn seamless stainless steel recessed handle
Latching: Gravity lift-type multi-point spring loaded latching:
3-point latching for openings 48" high and higher
2 point latching for openings 20" high thru 36" high
Hooks: 2-single hooks and 1-double hook is standard.
1- double hook only for triple tier
1 - single hook for 9" wide openings 30" and higher
Shelves: 16 gauge hat shelf for single tier openings 60" and 72" high

Handle: Single-point thru-the-door finger pull padlock hasp
Hooks: None
