Armstrong World Industries, Inc. -WOODWORKS Tegular: 5404F01W4

DOWNLOADS

Fully accessible wood panels are available in multiple options for acoustical and aesthetic needs.


Category: acoustical ceilings | commercial ceilings | drop-in ceiling panels...

MasterFormat: Ceilings | Acoustical Panel Ceilings | Acoustical Ceiling Suspension Assemblies...


View Product Details From Manufacturer


Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


WOODWORKS Tegular: 5404F01W4

Fully accessible wood panels are available in multiple options for acoustical and aesthetic needs.

  • Edge: Square Tegular 9/16"
  • Dimensions: 24" x 24"
  • Thickness: 3/4"
  • Shape: Rectangle

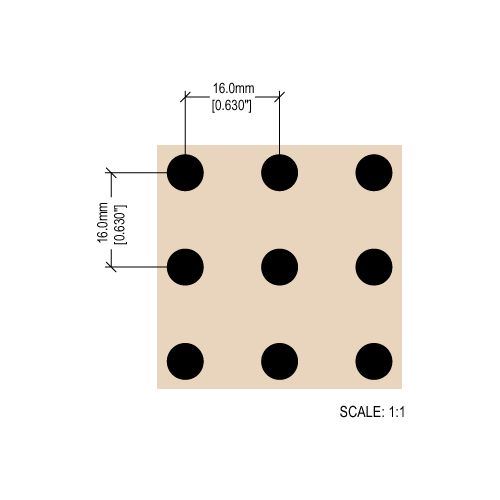

  • Perforation: W4
  • Acoustics:
    % Open Area: 11.0%
  • Fire Performance: Class A
  • Face Profile: 9/16"


See More


Specifications

Plain Slice CherryPlain Slice WalnutPlain Slice White AshPlain Slice White Maple
Plain Slice White OakQuartered MahoganyQuartered SapeleQuartered Walnut
Rift White OakVertical Grain Fir
Acoustics
% Open Area 11.0%
Fire
Fire Performance Class A
Sag/Humidity Resistance Standard
Mold/Mildew Resistance Standard
Disinfectability
Fog
Spray
Wipe
Durability
Washability
Special Applications
  • Library
Natural Variations Light CherryNatural Variations Maple
Material Wood
Texture Smooth
Surface Finish Ultra-violet clear semi-gloss coating
Shape Rectangle
Weight 2.75 lbs/SF
Sq Ft (Sq Ft / Piece) 4
Pieces / Carton 1
Installation Method Grid (Suspended)
Made In U.S.A. Of Domestic and Global Content Yes
Accessibility Yes
Contract Options
General Services Administration (GSA) Schedule General Services Administration (GSA) Schedule
Cooperative Educational Services (CES) Cooperative Educational Services (CES)
California Multiple Award Schedules (CMAS) California Multiple Award Schedules (CMAS)
Constants Redux Wood WheatConstants Walnut
Custom Finish
