Overview


WOODWORKS Grille - Forté Ceiling Panels: 6323L8S13

Enhanced structural design and dozens of standard solid wood panel configurations offer unmatched grille visuals.

Performance

  • 33 standard solid wood panel configurations in 4', 6', and 8' lengths minimize the need for customization

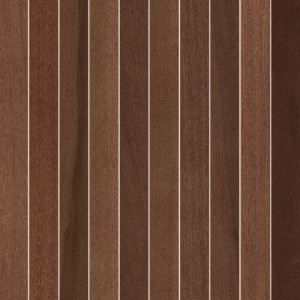

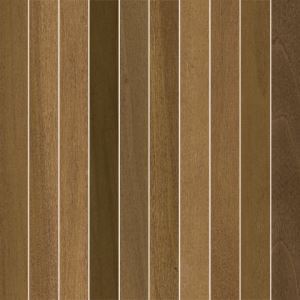

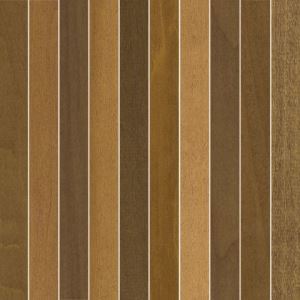

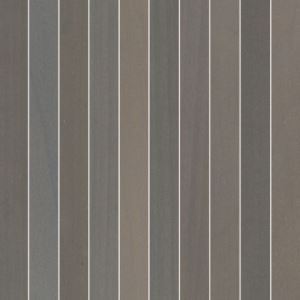

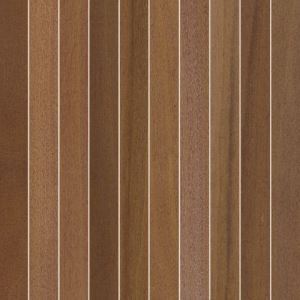

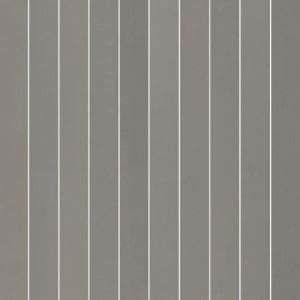

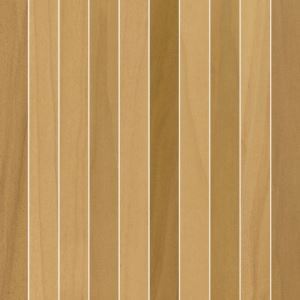

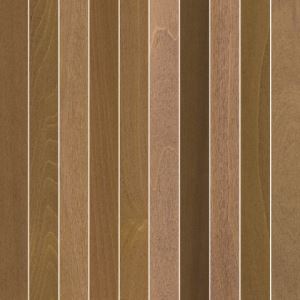

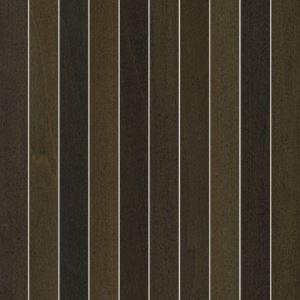

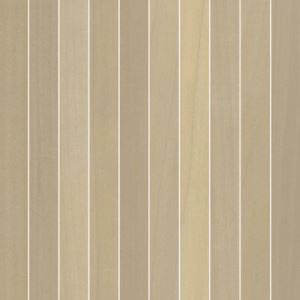

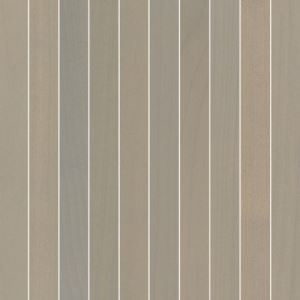

  • 11 on-trend standard finishes on solid poplar are tinted to replicate naturally occurring wood tones
  • Enhanced structural design with notched alignment backers minimize the naturally occurring twist of solid wood and improves handleability during install
  • Coordinating solid wood trims in 4” and 6” depths

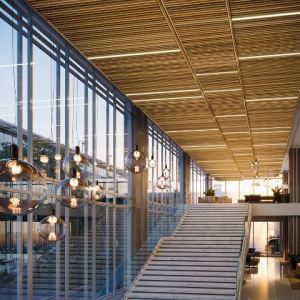

  • Install in the ceiling, on the wall, or create ceiling-to-wall transitions
  • Black acoustic infill panels hide the plenum and provide TOTAL ACOUSTICS with NRC up to .85 and CAC up to 35
  • 5 designs with at least 70% open area to minimize sprinkler install and material cost, achieving a less cluttered finished ceiling with an open aesthetic
  • Installs on familiar, heavy-duty PRELUDE Grid with pre-drilled backer holes eliminate splitting for long-term durability
  • Centered backers allow for a non-directional install, providing flexibility in install layout and clean accessibility
  • Integrated downlighting solutions from USAI® Lighting are certified for fit and finish and engineered to be supported by standard Armstrong suspension systems for use in all areas, including seismic DEF zones
  • CLEANASSURE family of products - includes disinfectable panels, suspension systems, and trim
  • Premium options include FSC®-certified wood, plenum-hiding fleece, additional tinted finishes, and flexible backers for wall-to-ceiling transitions
  • Custom options include unique panel configurations and lengths and additional species and finishes. Contact ASQuote@armstrongceilings.com


See More


Specifications

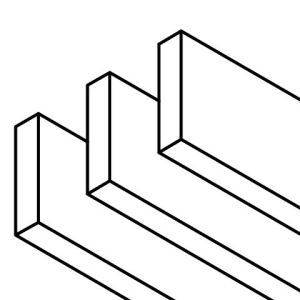

DimensionsSlat HeightSlat Width No. of Slats - Spacing
5-1/4"1-1/4"3 slats - 2-3/4"
12" x 96"
Performance

Acoustics

% Open Area 69%
Fire
Fire Performance Class C

Sag/Humidity Resistance

Standard
Disinfectability

Fog

Spray

Wipe

Physical Data
Material Wood
Texture Smooth
Surface Finish Ultra-violet tinted semi-gloss coating

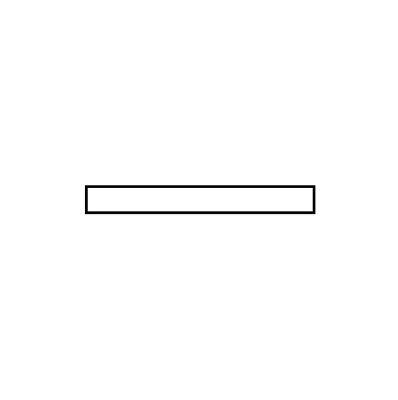

Shape Plank
Sq Ft (Sq Ft / Carton) 8
Pieces / Carton 1
Installation Method Grid (Suspended), Hanging Kit, or Direct Attach
Accessibility
Accessibility Yes
