ULTIMA Shapes for DESIGNFlex: 100305

Fine-textured ceiling panels available in tailor-made shapes and sizes with TOTAL ACOUSTICS and SUSTAIN performance. Available to ship in 3 weeks.

Performance

  • DESIGNFlex options include shapes, tailor-made sizes, and colors available to ship in 3 weeks.
  • Mix and match - Shapes also available in CALLA, LYRA, OPTIMA, METALWORKS, and WOODWORKS panels.
  • Get total noise control and floor plan versatility with TOTAL ACOUSTICS ceiling panel options: NRC + CAC = TOTAL ACOUSTICS Performance
  • ULTIMA panels are part of the SUSTAIN portfolio and meet the most stringent industry sustainability compliance standards today
  • CLEANASSURE family of products -includes disinfectable panels, suspension systems, and trim
  • Mold- and mildew-resistant surface
  • Light reflectance - 0.88
  • Lighting and MEP integration with TECHZONE or with shaped lights and diffusers available through one of our partner companies or with standard modular and pendant lights.
  • Washable, Impact-resistant, Scratch-resistant, Soil-resistant
  • Product can be recycled through the Armstrong Ceilings Recycling Program.
  • 10-Year Limited System Warranty against visible sag, mold, and mildew.


See More


Specifications

EdgeDimensionsAcoustics
Beveled Tegular 9/16 in24 in x 48 in x 3/4 in0.70 NRC
NOTE: Shape drawings are not to scale.
Accessibility
Accessibility Yes
Performance

Acoustics

Sound Absorption (NRC)

0.70
Fire
Fire Performance Class A

Light Reflectance

88%

Sag/Humidity Resistance

HumiGuard Plus
Insulation Value R Factor-BTU: 2.20 BTU
R Factor-Watts: 0.39 m2 K/W

BioBlock

Yes
Disinfectability

Fog

Durability

Soil Resistance

Impact Resistance

Scratch Resistance

Washability

Physical Data
Material Mineral Fiber
Texture Smooth
Surface Finish Factory-applied latex paint on DuraBrite acoustically transparent membrane

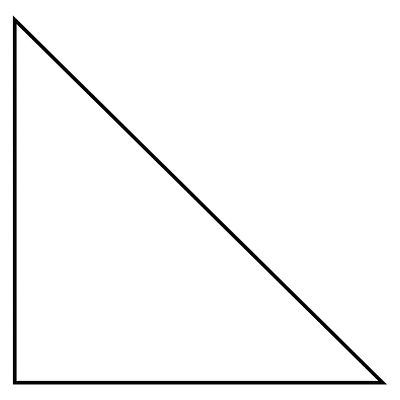

Shape Right Triangle - Left
Sq Ft (Sq Ft / Carton) 45.9
Pieces / Carton 12
ASTM Classification Type: IV, Form: 2, Pattern: E
Installation Method Grid (Suspended)
