Armstrong World Industries, Inc. -ULTIMA High NRC: 1431

DOWNLOADS

Smooth-texture panels that are washable, impact- and scratch-resistant with a non-directional visual. Offer both SUSTAIN and TOTAL ACOUSTICS panel performance for flexible spaces.


Category: acoustical ceiling suspension assemblies | curved ceilings | dropped ceilings...

MasterFormat: Ceilings | Acoustical Ceilings | Acoustical Ceiling Suspension Assemblies...


View Product Details From Manufacturer


Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


ULTIMA High NRC: 1431

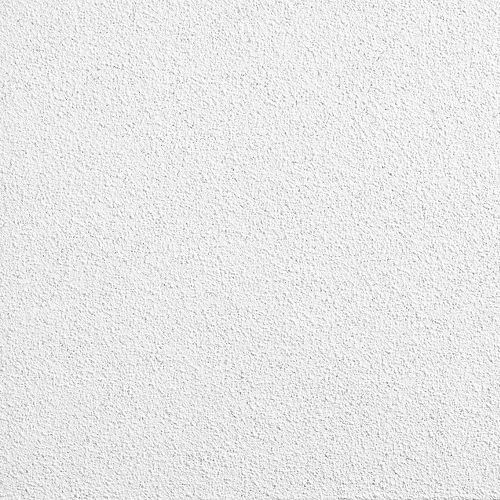

Smooth-texture panels that are washable, impact- and scratch-resistant with a non-directional visual. Offer both SUSTAIN and TOTAL ACOUSTICS panel performance for flexible spaces.

  • Edge: Beveled Tegular 9/16"
  • Dimensions: 30" x 30"
  • Thickness: 7/8"
  • Shape: Rectangle
  • Acoustics:
    NRC: 0.80 CAC: 35 AC: 170
  • Fire Performance: Class A (UL)
  • Light Reflectance: 87%
  • Face Profile: 9/16"


See More


Specifications

White
Acoustics
Sound Absorption (NRC) 0.80
Sound Blocking (CAC) 35
Articulation Class (AC) 170
Fire
Fire Performance Class A (UL)
Light Reflectance 87%
Sag/Humidity Resistance HUMIGUARD Plus
Insulation Value R Factor-BTU: 2.20 BTU
R Factor-Watts: 0.39 m2 K/W
Mold/Mildew Resistance BIOBLOCK
Disinfectability
Fog
Durability
Soil Resistance
Impact Resistance
Scratch Resistance
Washability
Special Applications
  • Library
  • Music / Language Room
Material Mineral Fiber
Texture Fine
Surface Finish Factory-applied latex paint on DuraBrite acoustically transparent membrane
Shape Rectangle
Weight 1.06 lbs/SF
Sq Ft (Sq Ft / Carton) 62.5
Pieces / Carton 10
ASTM Classification Type: A, Form: A2.2, Pattern: E
Installation Method Grid (Suspended)
Made In U.S.A. Of Domestic and Global Content Yes
Accessibility Yes
