Armstrong World Industries, Inc. -TECTUM DESIGNART - Lines Direct-Attach Walls: 5421D03T10

DOWNLOADS

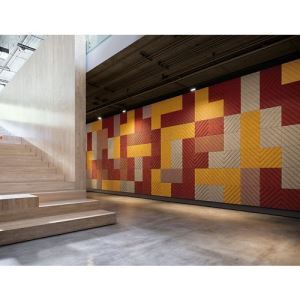

Transform interior spaces with a three dimensional visual by combining texture, routed patterns, and colors with sustainable, acoustical TECTUM DESIGNART - Lines Direct-Attach Wall Panels.


Category: absorbers | interior paneling | interior wall panels...

MasterFormat: Finish Carpentry | Prefinished Paneling | Board Paneling...



Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


TECTUM DESIGNART - Lines Direct-Attach Walls: 5421D03T10

Transform interior spaces with a three dimensional visual by combining texture, routed patterns, and colors with sustainable, acoustical TECTUM DESIGNART - Lines Direct-Attach Wall Panels.

  • Edge: Beveled (long side) / Beveled (short side)
  • Dimensions: 24" x 24"
  • Thickness: 1"
  • Shape: Rectangle

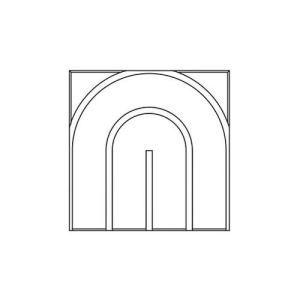

  • Pattern: Arcs
  • Acoustics:
    NRC A: 0.40 NRC D-20: 0.45 NRC C-20: 0.80 NRC C-40: 0.85
  • Fire Performance: Class A


See More


Specifications

BasaltBoxwoodBronziteCoffee
FeldsparFernFossilHay
HoneysuckleIvyLilacLimestone
MarigoldMistNaturalOat
OceanPacificPolarRainstorm
RiverstoneRoseSandstoneTopaz
TwilightCustom Color
Acoustics
NRC Rating A Mounting 0.40
NRC Rating D-20 Mounting 0.45
NRC Rating C-20 Mounting 0.80
NRC Rating C-40 Mounting 0.85
Fire
Fire Performance Class A
Humidity Resistance HUMIGUARD Plus
Mold/Mildew Resistance BIOBLOCK
Disinfectability
Fog
Durability
Impact Resistance
Special Applications
  • Music / Language Room
  • Swimming / Hydro-therapy
Material TECTUM Wood Fiber

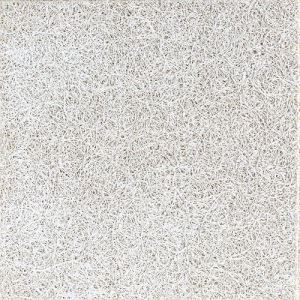

Texture Coarse
Shape Rectangle
Dimensions 24" x 24" x 1"
Weight 1.65 lbs/SF
Sq Ft (Sq Ft / Piece) 4
Pieces / Carton 1
Installation Method Direct Attach
Made In U.S.A. Of Domestic and Global Content Yes
