Overview


TECHZONE with WOODWORKS: 6514W1

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.

Performance
  • The TECHZONE system provides a clean, monolithic look using standard ceiling panels and suspension system
  • Available in five warm, rich, FSC-certified wood finishes

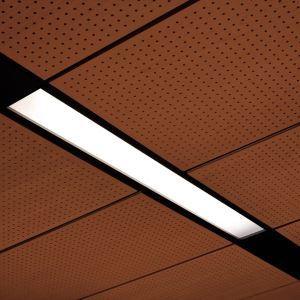

  • Organizes lighting, air diffusers/returns, and sprinkler systems into 6" wide technical zones. Use with TECHZONE with WOODWORKS Field Panels.
  • BioAcoustic infill panels enhance acoustics
  • 0.40 NRC with W2 perforation and infill panel
  • See our partners page for a range of compatible fixtures that are prequalified for fit and finish.


See More


Specifications

EdgeDimensionsPerforationAcoustics
Square Tegular 9/16 in6 in x 60 in x 3/4 inW1 - Unperforated38 CAC
Performance
Acoustics
Sound Blocking (CAC) 38
% Open Area 0%
Fire
Fire Performance Class A
Sag/Humidity Resistance Standard
Accessibility
Accessibility Yes
Physical Data
Material Fire-retardant Medium Density Fiberboard
Texture Smooth
Surface Finish Ultra-violet clear semi-gloss coating
Shape Rectangle
Sq Ft (Sq Ft / Carton) 2.5
Pieces / Carton 1
Installation Method Grid (Suspended)
