Armstrong World Industries, Inc. -TECHZONE with OPTIMA Technical Panels: 1414

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.

Performance

The TECHZONE system provides a clean, monolithic look using standard ceiling panels and suspension system

Category: acoustical ceilings | fiberglass ceilings | fire-resistant ceilings...

MasterFormat: Ceilings | Acoustical Panel Ceilings | Acoustical Tile Ceilings...

Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

Overview

TECHZONE with OPTIMA Technical Panels: 1414

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.

Performance

The TECHZONE system provides a clean, monolithic look using standard ceiling panels and suspension system

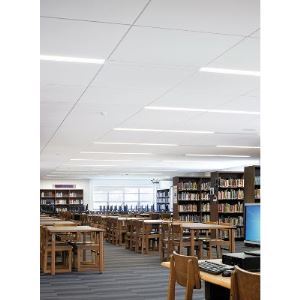

Organizes lighting, air diffusers/returns, and sprinkler systems into 4", 6", or 12" wide technical zones. Use with TECHZONE with OPTIMA Field Panels.
See our partners page for a range of compatible fixtures that are prequalified for fit and finish.

Specifications

Edge	Dimensions	Acoustics

Square Tegular 9/16 in	12 in x 96 in x 1 in	0.95 NRC 190 AC

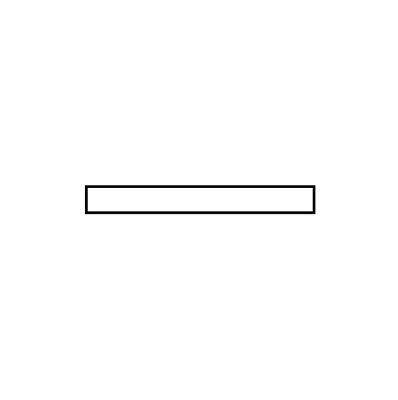

NOTE: Shape drawings are not to scale.

Performance

Acoustics
Sound Absorption (NRC)	0.95
Articulation Class (AC)	190
Fire
Fire Performance	Class A (UL)
Light Reflectance	88%
Sag/Humidity Resistance	HumiGuard Plus
Insulation Value	R Factor-BTU: 4.00 BTU R Factor-Watts: 0.70 m2 K/W
Disinfectability	Fog
Durability	Soil Resistance Impact Resistance Scratch Resistance Washability

Physical Data

Material	Fiberglass

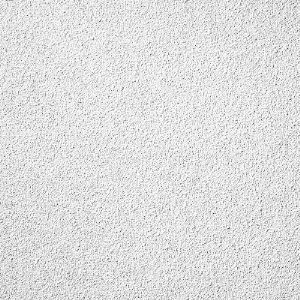

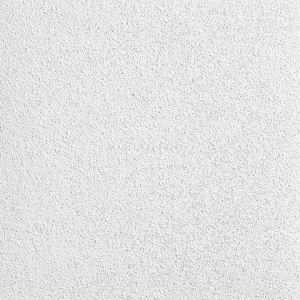

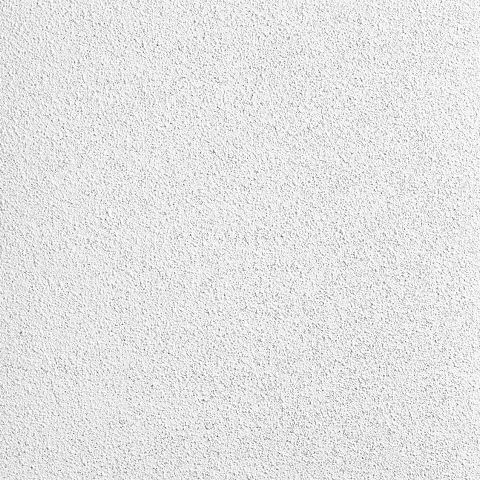

Texture	Fine
Surface Finish	Factory-applied latex paint on DuraBrite acoustically transparent membrane
Shape	Rectangle
Sq Ft (Sq Ft / Carton)	48
Pieces / Carton	6
ASTM Classification	Type: XII, Form: 2, Pattern: E
Installation Method	Grid (Suspended)
