Armstrong World Industries, Inc. -TECHZONE with OPTIMA Technical Panels: 1403

DOWNLOADS

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.


Category: clean room ceilings | commercial ceilings | fiberglass ceilings...

MasterFormat: Ceilings | Acoustical Ceilings | Acoustical Panel Ceilings...


View Product Details From Manufacturer


Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


TECHZONE with OPTIMA Technical Panels: 1403

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.

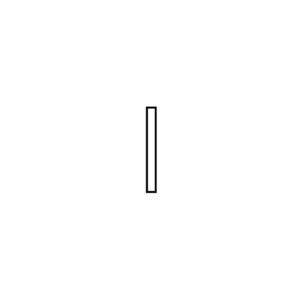

  • Edge: Square Tegular 9/16"
  • Dimensions: 6" x 48"
  • Thickness: 1"
  • Shape: Rectangle
  • Acoustics:
    NRC: 0.90 AC: 190
  • Fire Performance: Class A
  • Light Reflectance: 88%
  • Face Profile: 9/16"


See More


Specifications

White
Acoustics
Sound Absorption (NRC) 0.90
Articulation Class (AC) 190
Fire
Fire Performance Class A
Light Reflectance 88%
Sag/Humidity Resistance HUMIGUARD Plus
Mold/Mildew Resistance BIOBLOCK
Disinfectability
Fog
Material Fiberglass
Texture Fine
Surface Finish Factory-applied latex paint on DuraBrite acoustically transparent membrane
Shape Rectangle
Weight 0.55 lbs/SF
Sq Ft (Sq Ft / Carton) 24
Pieces / Carton 12
Installation Method Grid (Suspended)
Made In U.S.A. Of Domestic and Global Content Yes
