Armstrong World Industries, Inc. -TECHZONE with METALWORKS: 8227M1

DOWNLOADS

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.


Category: drop-in ceiling panels | dropped ceilings | metal ceilings...

MasterFormat: Ceilings | Acoustical Tile Ceilings | Acoustical Ceiling Suspension Assemblies...


View Product Details From Manufacturer


Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


TECHZONE with METALWORKS: 8227M1

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.

Performance

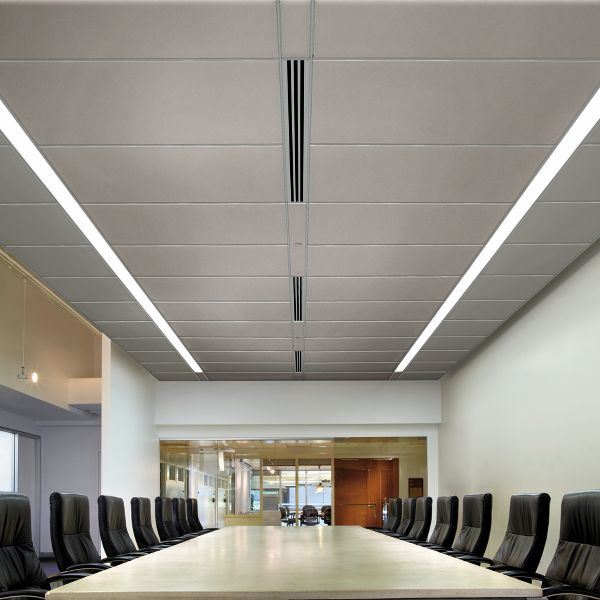

  • A clean, monolithic look using standard ceiling panels and suspension system.
  • Coordinate with TECHZONE with METALWORKS Technical Panels that organize lighting, air diffusers/returns, and sprinkler systems into 4", 6", or 12" wide technical zones.
  • A range of compatible fixtures from partner companies that are prequalified for fit and finish.


See More


Specifications

EdgeDimensionsPerforation
Square Tegular 9/16 in24 in x 72 in x 5/16 inM1 - Unperforated
Performance
Acoustics
% Open Area 0%
Fire
Fire Performance Class A
Light Reflectance 75%
Durability Soil Resistance Scratch Resistance
Washability
Scrubbability
Accessibility
Accessibility Yes
Physical Data
Material Metal
Texture Smooth
Surface Finish Factory-applied polyester paint
Shape Rectangle
Sq Ft (Sq Ft / Carton) 12
Pieces / Carton 1
ASTM Classification Type: XX, Pattern: G
Installation Method Grid (Suspended)
