Armstrong World Industries, Inc. -TECHZONE with METALWORKS: 6649M1

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.

Category: drop-in ceiling panels | dropped ceilings | fire-resistant ceilings...

MasterFormat: Ceilings | Acoustical Ceiling Suspension Assemblies | Integrated Ceiling Assemblies

Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

Overview

TECHZONE with METALWORKS: 6649M1

TECHZONE ceilings are the industry’s first easy-to-specify-and-install ceiling solution with integrated technical services.

Performance

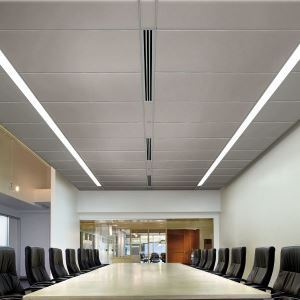

The TECHZONE system provides a clean, monolithic look using standard ceiling panels and suspension system
Organizes lighting, air diffusers/returns, and sprinkler systems into 4", 6", or 12" wide technical zones. Use with TECHZONE with METALWORKS Field Panels.
TOTAL ACOUSTICS performance with Mineral Fiber, fleece, or infill panel backing.
Exceptionally durable: washable, scrubbable, and soil-resistant.
See our partners page for a range of compatible fixtures that are prequalified for fit and finish.

Specifications

Performance

Acoustics
Sound Absorption (NRC)	0.10
Sound Blocking (CAC)	36
% Open Area	0%
Fire
Fire Performance	Class A
Light Reflectance	77%
Sag/Humidity Resistance	Standard
Durability	Soil Resistance Washability Scrubbability

Accessibility

Accessibility

Yes

Physical Data

Material	Metal
Texture	Smooth
Surface Finish	Factory-applied polyester paint
Shape	Rectangle
Sq Ft (Sq Ft / Carton)	2
Pieces / Carton	1
Installation Method	Grid (Suspended)
