Armstrong World Industries, Inc. -SILHOUETTE XL 9/16" Bolt Slot - 1/4" Reveal: 7638

Sophisticated slotted 9/16" suspension system with a narrow 1/4" reveal.

Category: acoustic ceiling suspension systems | dropped ceilings | metal ceiling grids...

MasterFormat: Ceilings | Acoustical Ceilings | Acoustical Ceiling Suspension Assemblies...

Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

Overview

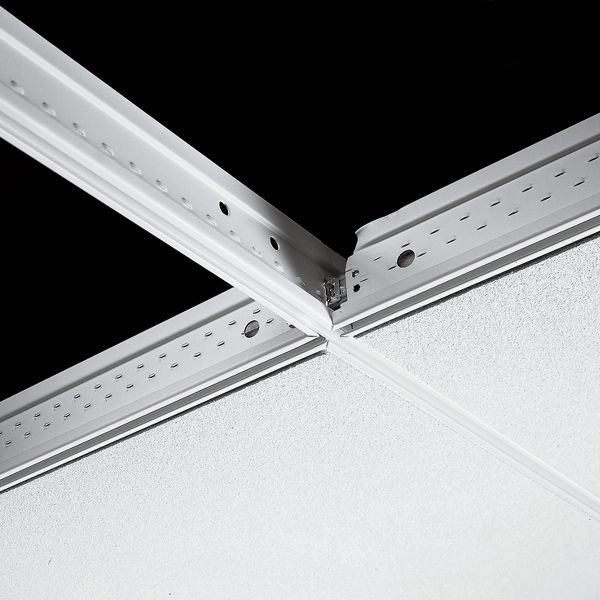

SILHOUETTE XL 9/16" Bolt Slot - 1/4" Reveal: 7638

Sophisticated slotted 9/16" suspension system with a narrow 1/4" reveal.

Performance

Seismic Rx Suspension System saves time and money
Hot-dipped galvanized coating inhibits red rusting
Available with black reveal
Rotary-stitched for additional torsional strength and installation stability
10-Year Limited System Warranty; 30-Year Limited Ceiling Systems Warranty when used with HumiGuard Plus products
FASTSIZE main beams and cross tees can be ordered with special sizing and route spacing for your project needs in one carton minimums with two week lead times

Specifications

Component Type	Description	Dimensions

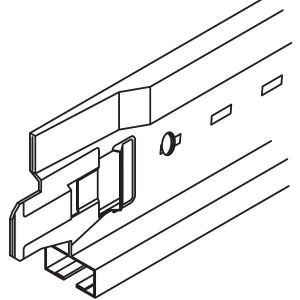

Main Beam	126in 1/4" Silhouette Main Beam Routs, 30,90,96"	126 in x 9/16 in x 1-3/4 in

Performance

Physical Data

Material	Hot-dipped Galvanized Steel
Cross Tee/Main Beam Interface	Mitered
End Detail	Coupling
Feet (Ft / Carton)	210
Pieces / Carton	20

Visual
