PRELUDE XL 15/16" Exposed Tee: 730098HRC

This hot-dipped galvanized steel 15/16" suspension system offers high recycled content for improved LEED credits.

Performance
  • Seismic Rx Suspension System saves time and money; Armstrong offers an ICC-ES approach to installations (ESR-1308)
  • PeakForm profile increases strength and stability for improved performance during installation
  • SuperLock main beam clip is engineered for a stro...

Category: acoustic ceiling suspension systems | dropped ceilings | metal ceiling grids...

MasterFormat: Ceilings | Acoustical Ceilings | Acoustical Ceiling Suspension Assemblies...



Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

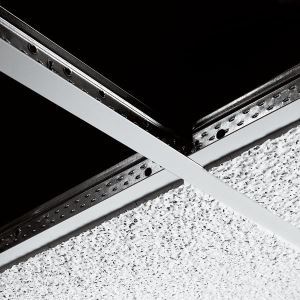

PRELUDE XL 15/16" Exposed Tee: 730098HRC

This hot-dipped galvanized steel 15/16" suspension system offers high recycled content for improved LEED credits.

Performance
  • Seismic Rx Suspension System saves time and money; Armstrong offers an ICC-ES approach to installations (ESR-1308)
  • PeakForm profile increases strength and stability for improved performance during installation
  • SuperLock main beam clip is engineered for a strong, secure connection and fast, accurate alignment confirmed with an audible click; easy to remove/relocate
  • Hot-dipped galvanized coating inhibits red rusting better than electrogalvanized or painted systems
  • Rotary-stitched during manufacture for additional torsional strength and extra stability during installation
  • Fire Guard options offer UL design fire-rated performance
  • Blizzard White powder-coated finish coordinates with CALLA, OPTIMA, ULTIMA, and LYRA ceiling panels for a clean, seamless, monolithic installed visual.


See More


Specifications

Component TypeDescriptionDimensions

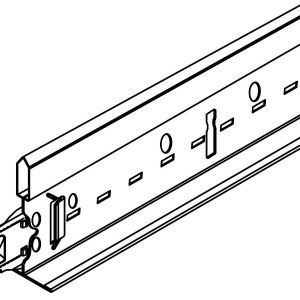

Main Beam98in SingleSpan - Prelude Peak Plus98 in x 15/16 in x 2-7/16 in
Performance
Duty Rating Heavy Duty
Hanger Spacing 6' - 10.5 plf
Seismic Category * DEF
Physical Data
Material Hot-dipped Galvanized Steel
Rout/Slot Spacing and UOM 6 in
Cross Tee/Main Beam Interface Override
End Detail Splice with screws
Feet (Ft / Carton) 81.667
Pieces / Carton 10
Visual
Length 98 in
Face Profile 15/16 in
Height 2-7/16 in
Profile Type Exposed Tee
Component Type Main Beam
