Armstrong World Industries, Inc. -OPTIMA PB VECTOR: 3909

Fine-textured panels, with a 1/4" reveal, and downward accessibility; Ideal for projects were plenum space is limited. Offers high sound absorption.

Category: fiberglass ceilings | impact resistant ceilings | metal ceilings...

MasterFormat: Ceilings | Acoustical Panel Ceilings | Acoustical Tile Ceilings...

Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

Overview

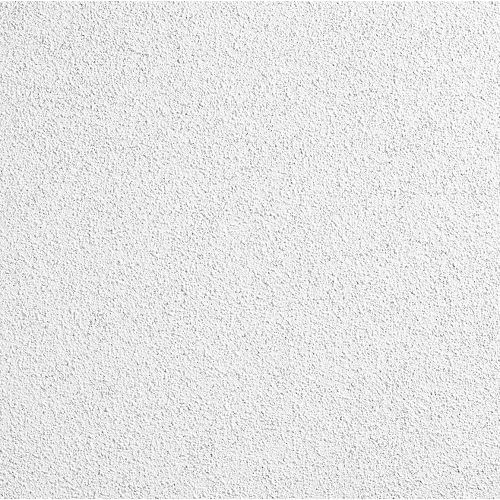

OPTIMA PB VECTOR: 3909

Fine-textured panels, with a 1/4" reveal, and downward accessibility; Ideal for projects were plenum space is limited. Offers high sound absorption.

Specifications

White

Acoustics
Sound Absorption (NRC)	0.90
Articulation Class (AC)	190
Fire
Fire Performance	Class A (UL)
Sag/Humidity Resistance	HUMIGUARD Plus
Insulation Value	R Factor-BTU: 3.50 BTU R Factor-Watts: 0.62 m2 K/W
Mold/Mildew Resistance	BIOBLOCK
Disinfectability
Fog
Durability
Soil Resistance
Scratch Resistance
Washability
Special Applications	Library

Material	Fiberglass
Texture	Fine
Surface Finish	Factory-applied latex paint on DuraBrite acoustically transparent membrane
Shape	Rectangle
Weight	0.60 lbs/SF
Sq Ft (Sq Ft / Carton)	64
Pieces / Carton	4
ASTM Classification	Type: B, Form: B2, Pattern: E
Installation Method	Grid (Suspended)
Made In U.S.A. Of Domestic and Global Content	Yes
Contract Options
General Services Administration (GSA) Schedule	General Services Administration (GSA) Schedule
Cooperative Educational Services (CES)	Cooperative Educational Services (CES)
California Multiple Award Schedules (CMAS)	California Multiple Award Schedules (CMAS)
