OPTIMA PB Vector: 3906PB

Fine-textured panels, with a 1/4" reveal, and downward accessibility; Ideal for projects were plenum space is limited. Offers high sound absorption.

Performance

  • DESIGNFLEX options include made-to-order sizes available to ship in 3 weeks
  • OPTIMA PB Vector panels are part of the SUSTAIN portfolio and meet the most stringent industry sustainability compliance standards today
  • 1/4" reveal between acoustical panels results in a monolithic appearance
  • Vector Trim Kit in Blizzard White finish for easy installation and bright visual
  • Downward accessible for minimal plenum height
  • Outstanding acoustical performance for open plan areas, both Articulation Class (190) and NRC (0.80-0.90)
  • CLEANASSURE family of products -includes disinfectable panels, suspension systems, and trim
  • Mold- and mildew-resistant surface
  • Smooth, clean durable finish - Washable, Scratch-resistant Soil-resistant
  • Energy-saving high light-reflective finish
  • Items with PB suffix are manufactured with a plant-based binder
  • Item 3901PB available in Create! printed images and patterns
  • 30-Year Limited System Warranty against visible sag, mold, and mildew
  • Integrate linear lights by replacing cross tees with T-BAR LED™ lights by JLC-Tech.


See More


Specifications

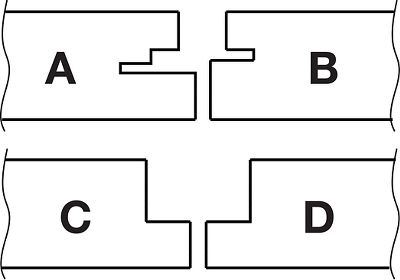

EdgeDimensionsAcoustics
Vector 15/16 in24 in x 72 in x 7/8 in0.90 NRC
190 AC
NOTE: Shape drawings are not to scale.
Accessibility
Accessibility Yes
Performance

Acoustics

Sound Absorption (NRC)

0.90

Articulation Class (AC)

190
Fire
Fire Performance Class A (UL)

Light Reflectance

88%

Sag/Humidity Resistance

HumiGuard Plus
Insulation Value R Factor-BTU: 3.62 BTU
R Factor-Watts: 0.637 m2 K/W
Disinfectability

Fog

Durability

Soil Resistance

Impact Resistance

Scratch Resistance

Washability

Special Applications

Library

Physical Data
Material Fiberglass

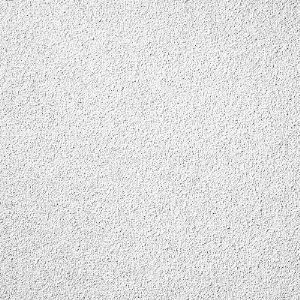

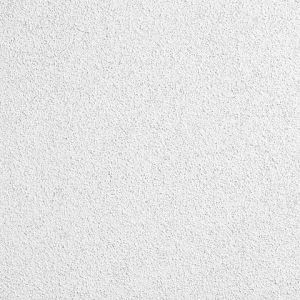

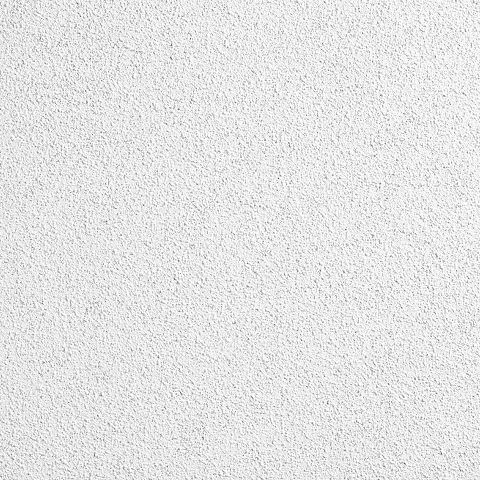

Texture Fine
Surface Finish Acoustically transparent membrane with factory applied latex paint

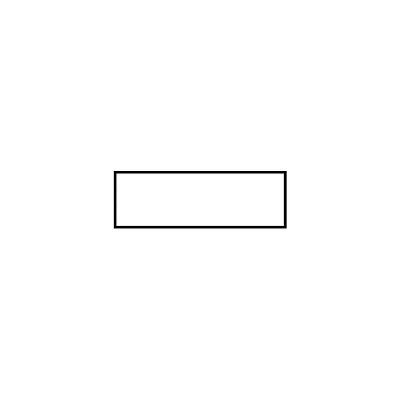

Shape Rectangle
Weight 0.50 PF2
Sq Ft (Sq Ft / Carton) 72
Pieces / Carton 6
ASTM Classification Type: IV, Form: 2, Pattern: E
Installation Method Grid (Suspended)
