Armstrong World Industries, Inc. -METALWORKS Torsion Spring: 7226M14

DOWNLOADS

A monolithic visual with a unique hide-the-grid installation and 100% swing-down accessibility.


Category: ceiling | ceiling | commercial ceilings...

MasterFormat: Ceilings | Acoustical Ceilings | Acoustical Panel Ceilings...


View Product Details From Manufacturer


Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


METALWORKS Torsion Spring: 7226M14

A monolithic visual with a unique hide-the-grid installation and 100% swing-down accessibility.

  • Edge: Square 15/16"
  • Dimensions: 24" x 48"
  • Thickness: 1-1/2"

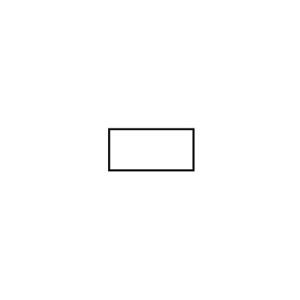

  • Shape: Rectangle

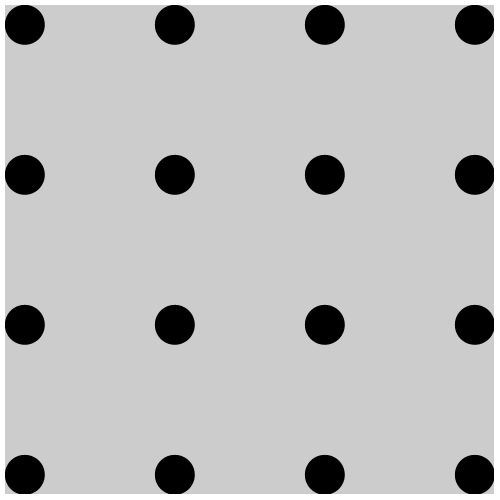

  • Perforation: M14
  • Acoustics:
    % Open Area: 5% NRC: 0.55
  • Fire Performance: Class A
  • Light Reflectance: 61%
  • Face Profile: 15/16"


See More


Specifications

WhitelumeGun MetalSilverlume
Acoustics
Sound Absorption (NRC) 0.55
% Open Area 5%
Fire
Fire Performance Class A
Light Reflectance 61%
Sag/Humidity Resistance Standard
Mold/Mildew Resistance Standard
Disinfectability
Fog
Spray
Wipe
Durability
Soil Resistance
Impact Resistance
Washability
Scrubbability
Special Applications
  • Library
  • Exterior
Custom ColorCustom Wood Look Finish
Material Metal
Texture Smooth
Surface Finish Polyester paint, acrylic latex paint on acoustically transparent membrane, or vinyl-faced membrane
Shape Rectangle
Weight 0.86 lbs/SF
Sq Ft (Sq Ft / Piece) 8
Pieces / Carton 1
ASTM Classification Type: XX, Pattern: C
Installation Method Grid (Suspended)
Accessibility Yes
