Armstrong World Industries, Inc. -METALWORKS Tegular: 6464M3

Durable, steel panels with 100% upward accessibility offer excellent sound blocking/absorption options

Category: acoustical ceilings | commercial ceilings | metal ceilings...

MasterFormat: Ceilings | Acoustical Panel Ceilings | Acoustical Tile Ceilings...

Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

Overview

METALWORKS Tegular: 6464M3

Durable, steel panels with 100% upward accessibility offer excellent sound blocking/absorption options

Performance

Available with TrioGuard coating that resists dirt, bacteria, mold, mildew, and color fading
Panels can be used to create continuous looks or clouds using AXIOM or Effects Wood Looks trim
Available for TECHZONE ceiling systems applications

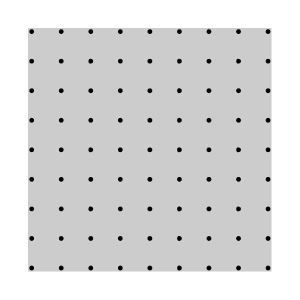

Standard perforations enhance acoustical performance and design aesthetics
Outstanding acoustics with fleece or infill panel
BioAcoustic infill panels can enhance acoustics and contribute to LEED credits
18" x 18" METALWORKS Tegular panels available for METAPHORS Coffers

Specifications

Performance

Acoustics
Sound Absorption (NRC)	0.65
Sound Blocking (CAC)	40
% Open Area	1.5%
Fire
Fire Performance	Class A (FM)
Light Reflectance	77%
Sag/Humidity Resistance	Standard
Durability	Soil Resistance Washability Scrubbability
Special Applications	Library Music / Language Room

Accessibility

Accessibility

Yes

Physical Data

Material	Metal
Texture	Smooth
Surface Finish	Factory-applied powder coated finish
Shape	Rectangle
Weight	0.92 PF2
Sq Ft (Sq Ft / Carton)	64
Pieces / Carton	16
ASTM Classification	Type: XX, Pattern: C
Installation Method	Grid (Suspended)
