Armstrong World Industries, Inc. -METALWORKS Shapes for DESIGNFLEX: 8296M1

DOWNLOADS

Now, METALWORKS Shapes in 45° and 60° triangles, parallelograms, and trapezoids.


Category: acoustical ceiling suspension assemblies | acoustical ceilings | dropped ceilings...

MasterFormat: Ceilings | Acoustical Ceilings | Acoustical Ceiling Suspension Assemblies...


View Product Details From Manufacturer


Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


METALWORKS Shapes for DESIGNFLEX: 8296M1

Now, METALWORKS Shapes in 45° and 60° triangles, parallelograms, and trapezoids.

  • Edge: Square Tegular 9/16"
  • Dimensions: 24" x 48"
  • Thickness: 5/16"

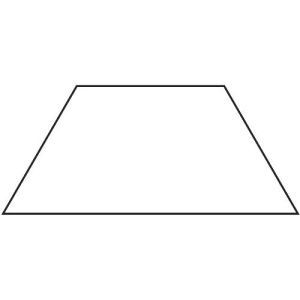

  • Shape: Trapezoid
  • Perforation: M1 - Unperforated
  • Fire Performance: Class A
  • Light Reflectance: 75%
  • Face Profile: 9/16"


See More


Specifications

WhitelumeBlackGun MetalSilverlume
Acoustics
% Open Area 0%
Fire
Fire Performance Class A
Light Reflectance 75%
Sag/Humidity Resistance HUMIGUARD Plus
Mold/Mildew Resistance Inherent
Disinfectability
Fog
Spray
Wipe
Durability
Soil Resistance
Scratch Resistance
Washability
Scrubbability
Custom Color
Material Metal
Texture Smooth
Surface Finish Factory-applied polyester paint
Shape Trapezoid
Weight 0.55 lbs/SF
Sq Ft (Sq Ft / Piece) 6
Pieces / Carton 1
ASTM Classification Type: XX, Pattern: G
Installation Method Grid (Suspended)
Accessibility Yes
