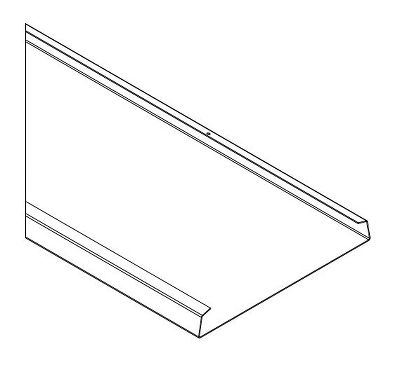

METALWORKS Linear - Synchro: 8223W06M1

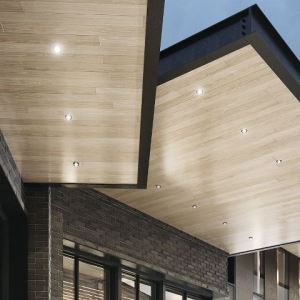

Achieve a smooth, sleek, monolithic visual using durable, acoustical, and accessible linear planks

Performance

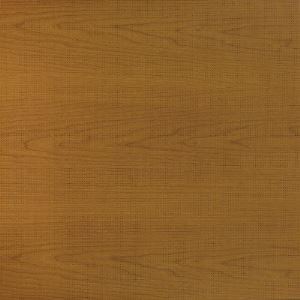

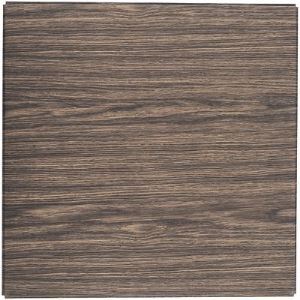

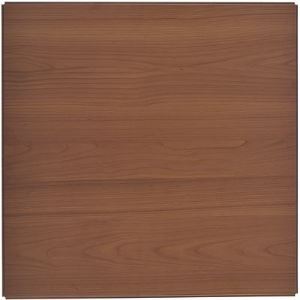

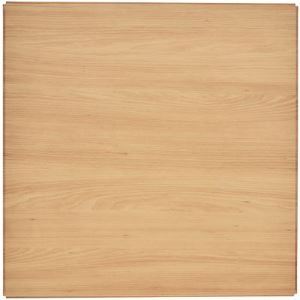

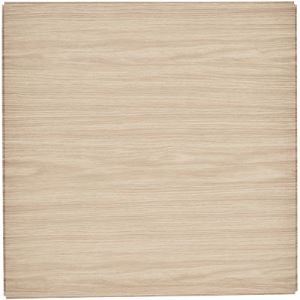

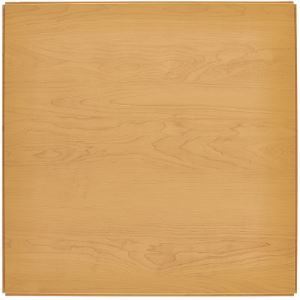

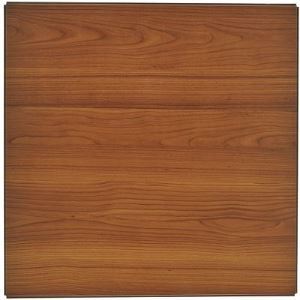

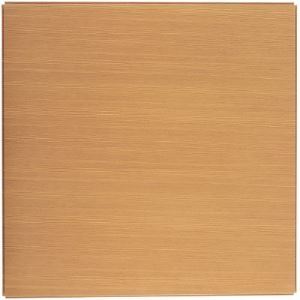

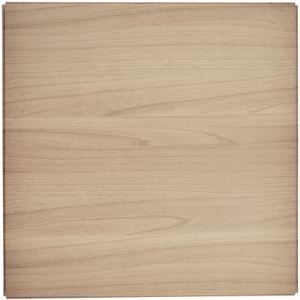

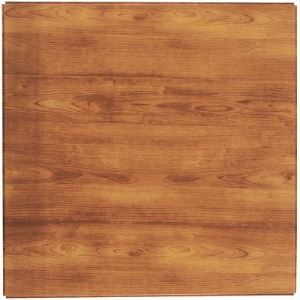

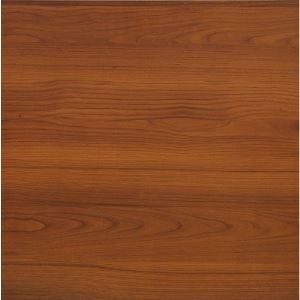

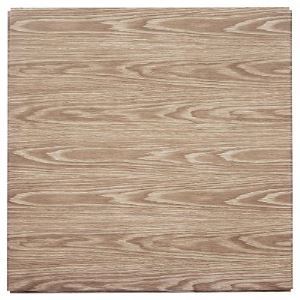

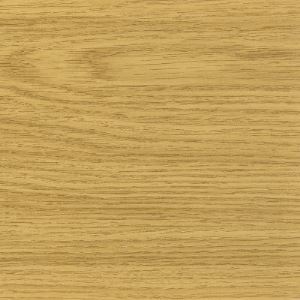

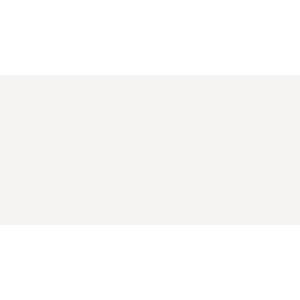

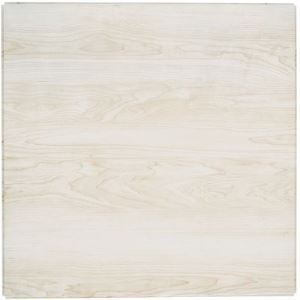

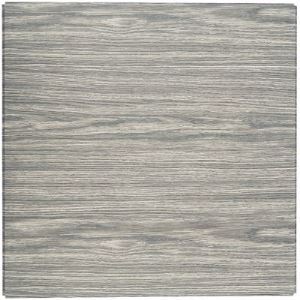

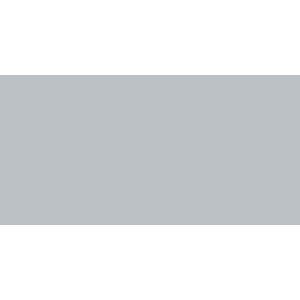

• Nominal 2", 4", 6", 9", 11", and 13" wide, M1 only planks now available for exterior applications in four standard metal finishes and 17 Effects™ finishes
• Available for exterior applications, tested to meet wind uplift Classes 30, 60, and 90
• Planks easily snap into upper hooks of new Main Beam Carrier 2 (item 7277MF)
• Discontinuous ceilings possible with AXIOM trim or coordinating Effects trim using the Adjustable Trim Clip
• CLEANASSURE family of products - includes disinfectable planks, suspension systems, and trim
• Planks and suspension system tested and approved for seismic areas per ASTM E580, AC 156
• Acceptance Criteria for Seismic Qualification Testing of Non-structural Components, and ASTM 3118
• Achieve high sound absorption for increased acoustical performance with perforated M2 planks - 0.70 NRC
• Integrate field-cut linear lighting fixtures from Backlight® srl and XAL®; pre-engineered AXIOM Indirect Field Light Coves for Specialty Ceilings tested for fit and finish to achieve predictable lighting performance
