Overview


LYRA PB Shapes for DESIGNFlex: 100020

The smoothest fiberglass ceiling panels available in shapes, tailor-made sizes, and colors with SUSTAIN performance. Available to ship in 3 weeks.

Performance

  • DESIGNFlex options include shapes, tailor-made sizes, and colors available to ship in 3 weeks.
  • Mix and match - Shapes also available in CALLA, ULTIMA, OPTIMA, METALWORKS, and WOODWORKS panels.
  • LYRA PB panels are manufactured with a plant-based binder and are part of the SUSTAIN portfolio, and meet the most stringent industry sustainability compliance standards today
  • CLEANASSURE family of products -includes disinfectable panels, suspension systems, and trim
  • Mold- and mildew-resistant surface
  • Excellent sound absorption - NRC 0.95
  • Light reflectance - 0.88 (white only)
  • Shaped lights and diffusers are available from our DESIGNFlex partners. Our TECHZONE lighting and MEP partners also provide products that are compatible with the DESIGNFlex system; other standard modular and pendant fixtures can also be used with this ceiling system.
  • Washable, Impact-resistant, Scratch-resistant, Soil-resistant
  • Product can be recycled through the ARMSTRONG Ceilings Recycling Program.


See More


Specifications

EdgeDimensionsAcoustics
Square Tegular 9/16 in24 in x 12 in x 1 in0.95 NRC
NOTE: Shape drawings are not to scale.
Accessibility
Accessibility Yes
Performance

Acoustics

Sound Absorption (NRC)

0.95
Fire
Fire Performance Class A

Light Reflectance

88%

Sag/Humidity Resistance

HumiGuard Plus
Insulation Value R Factor-BTU: 4.40 BTU
R Factor-Watts: 0.76 m2 K/W
Disinfectability

Fog

Durability

Soil Resistance

Impact Resistance

Scratch Resistance

Washability

Physical Data
Material Fiberglass
Texture Smooth
Surface Finish Acoustically transparent membrane with factory applied latex paint

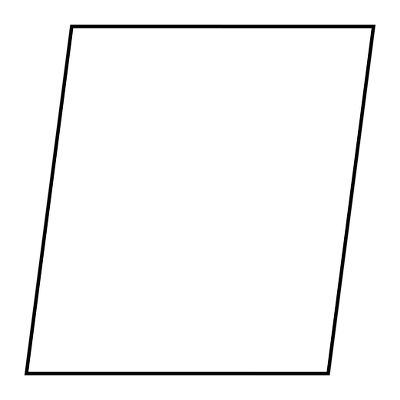

Shape Right Parallelogram
Sq Ft (Sq Ft / Carton) 47.4
Pieces / Carton 24
ASTM Classification Type: XII, Form: 2, Pattern: E
Installation Method Grid (Suspended)
